Overview

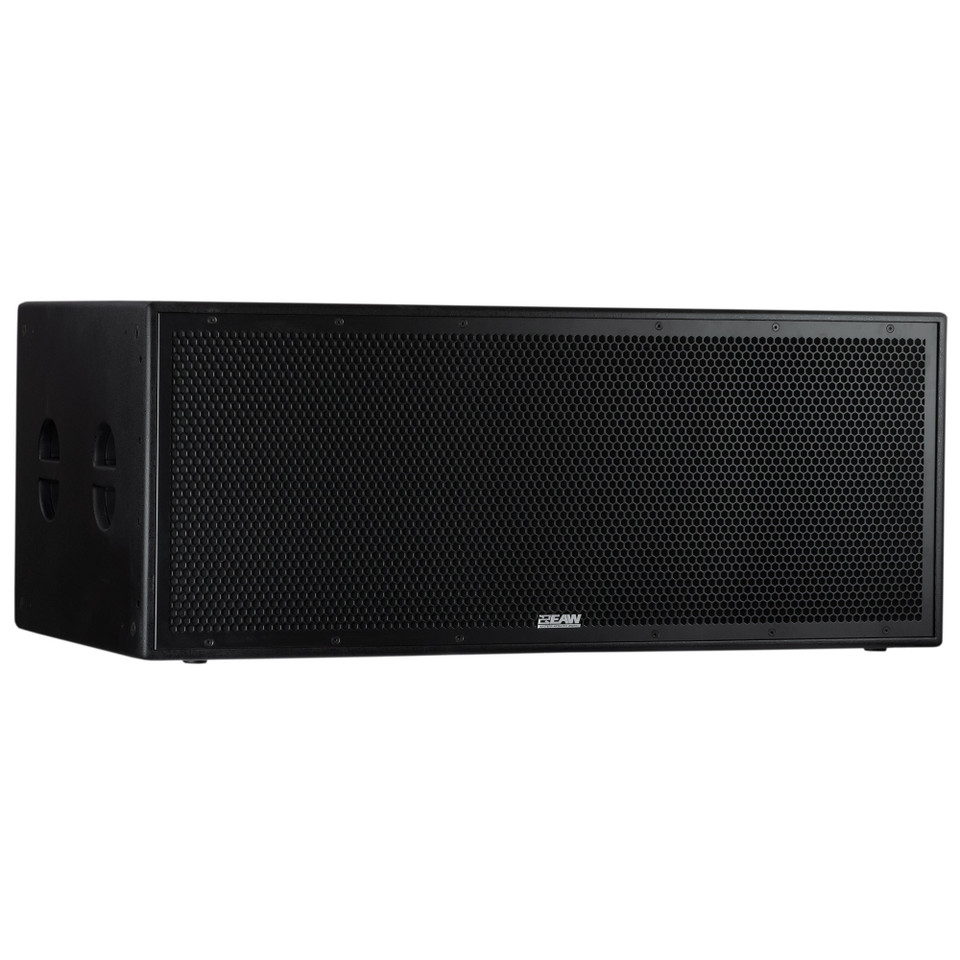

SB828P - Black

The EAW engineering team has pushed the legendary SB series to new levels with the introduction of SB825 and SB828.

The SB800 Series is designed around a low turbulence port based in fluid dynamic research married with groundbreaking transducer design. Innovative ultra-linear suspension behavior and symmetric flux density provide exceptional impulse response and output.

Compact height and depth allow for the subwoofers to be deployed in many room types, and configurable sound-isolating feet allow for either horizontal or vertical installation. Sixteen M10 mounting points allow for a myriad of permanent suspension options.

Specifications

• Frequency Response: 25hz – 130hz
• Max SPL: 143 dB (Half Space)
• Operating Mode: Single Amp, LF
• Subsystem: 2x 18in Cone, 4.5in Tetracoil Dual VC, Vented
• Nominal Beamwidth

  • Horizontal 360°
  • Vertical 360°
• Power Handling: 4000W @ 4ohms
• Connections

  • Barrier Strip
  • NL4 Input/Loop
• Dimensions

  • Height: 21.3 in (540 mm)
  • Width: 52.5 in (1334 mm)
  • Depth: 30 in (762 mm)
• Weight: 200 lbs (90.7 kg)
