Overview

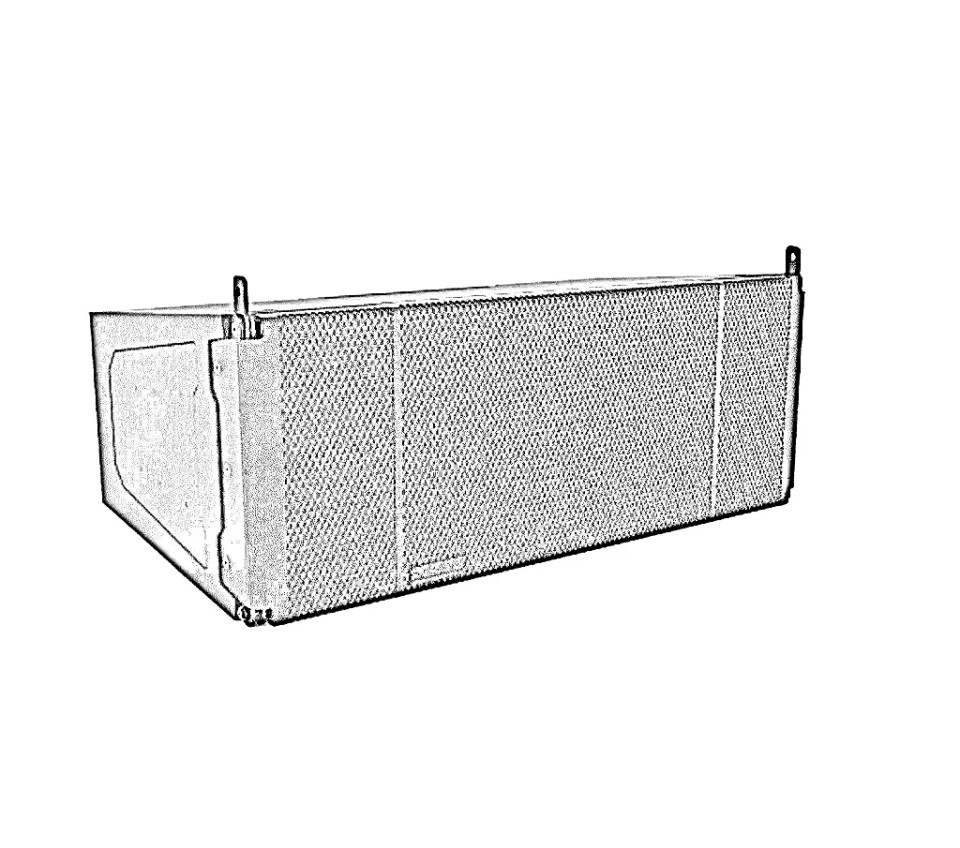

KF810P
Installation Line Array
The KF810 line array system offers best-in-class output, true broadband pattern control, and integrated 3-way performance, hallmarks of the legendary KF series.
The KF810P incorporates specific design features tailored for the installation market: clean aesthetics offered in black or white, invisible wiring, and concealed 3-point rigging. A weather rated option allows for long term permanent installation in demanding environments backed by EAW’s full warranty.
Engineered for a wide variety of applications, the compact KF810 module is comprised of dual 3″ voice coil high frequency compression drivers, four 5″ mid-frequency transducers and two 3″ voice coil high power 10″ LF drivers. The output of these sources unites through an integrated horn that occupies nearly the entire forward face of the speaker enclosure, delivering up to 145dB with accurate pattern control to 250Hz to master the most challenging acoustic spaces.
- Best in Class Acoustic Performance
- Optional 80° or 110° Dispersion
- Ultra-Clean Look
- Concealed Wiring and Rigging
Configuration
Subsystem
Transducer
LF 2X 10in, 3.0in VC
MF 4X 5in, 1.7in VC
HF 2X 1.4in exit, 3in VC
Loading
LF Ported, Phase Aligned
MF Horn-loaded w/CSA™ Aperture
HF Horn-loaded
Operating Mode
Amplifier Channels
Bi-amp LF, MF / HF
External Signal Processing
DSP w/EAW Focusing
Performance
Peak SPL
145dB
Operating Range:
50 Hz to 20 kHz
Nominal Beamwidth:
Horizontal – 110° or 80°
Vertical – 10°
Input Impedance
LF 8 Ohms
MF / HF 8 Ohms
Ordering
Description
EAW KF810P 3-WAY BI-AMP PASSIVE LINE ARRAY
Part Numbers
Black
KF810P-80° dispersion-2070007-90
KF810P-110° dispersion-2070120-90
White
KF810P-80° dispersion-2070132-90
KF810P-110° dispersion-2070131-90
Accessories
Subwoofer
Black SB818P-F 2070134-90
White 2070180-90
KF810P Flybar
Black 2070266-90
White 2070328-90
Physical/Rigging
3-Point Proprietary Rigging
Dimensions (H × W × D)
12.6″ x 32.9″ x 17.4″ (320mm × 835mm × 443mm)
Net Weight
90lbs (41kg)
