Overview

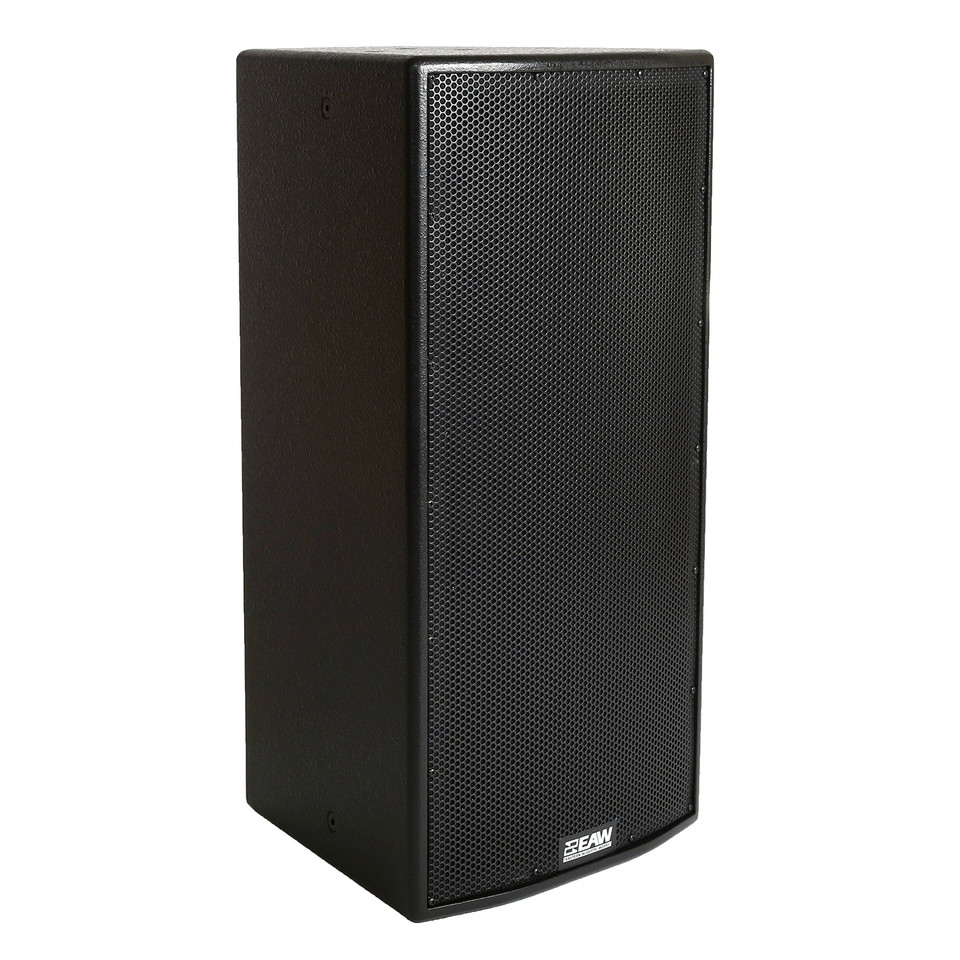

The MK Series is EAW’s state-of-the-art, passive, two-way systems specifically engineered for permanent installation.

The series includes three sub-series each of which shares a common enclosure as well as three dedicated subwoofer systems. All MK Series systems feature large-format HF horns that maintain pattern control throughout the crossover region, enabling EAW’s beamwidth matching crossover technology that improves performance through the crossover region.

Specifications

Configuration

• Subsystem
• Transducer: LF – 1x 12 in. cone; HF – 1x 1.4 in. exit, 3 in. voice coil compression driver
• Loading: LF – Vented; HF – Horn-loaded
• Operating Mode
• Amplifier Channels: Single-amp LF/HF; Bi-amp LF, HF
• External Signal Processing: High pass filter; DSP w/2-way filters

Performance

• Operating Range (-10 dB, Hz): 65Hz – 18KHz
• Axial Sensitivity (1W @ 1m, dB SPL)
• LF: 97
• HF: 100
• Full Range: 95
• Power Handling / Impedance (Watts @ Ohms)
• LF: 600 @ 8
• HF: 150 @ 8
• Full Range: 600 @ 8
• Calculated Maximum Output Peak (dB SPL)
• LF: 131
• HF: 128
• Full Range: 128
• Calculated Maximum Output Long Term (dB SPL)
• LF: 125
• HF: 122
• Full Range: 122
• Nominal Coverage (degrees)
• Horizontal: 120
• Vertical: 60
