Overview

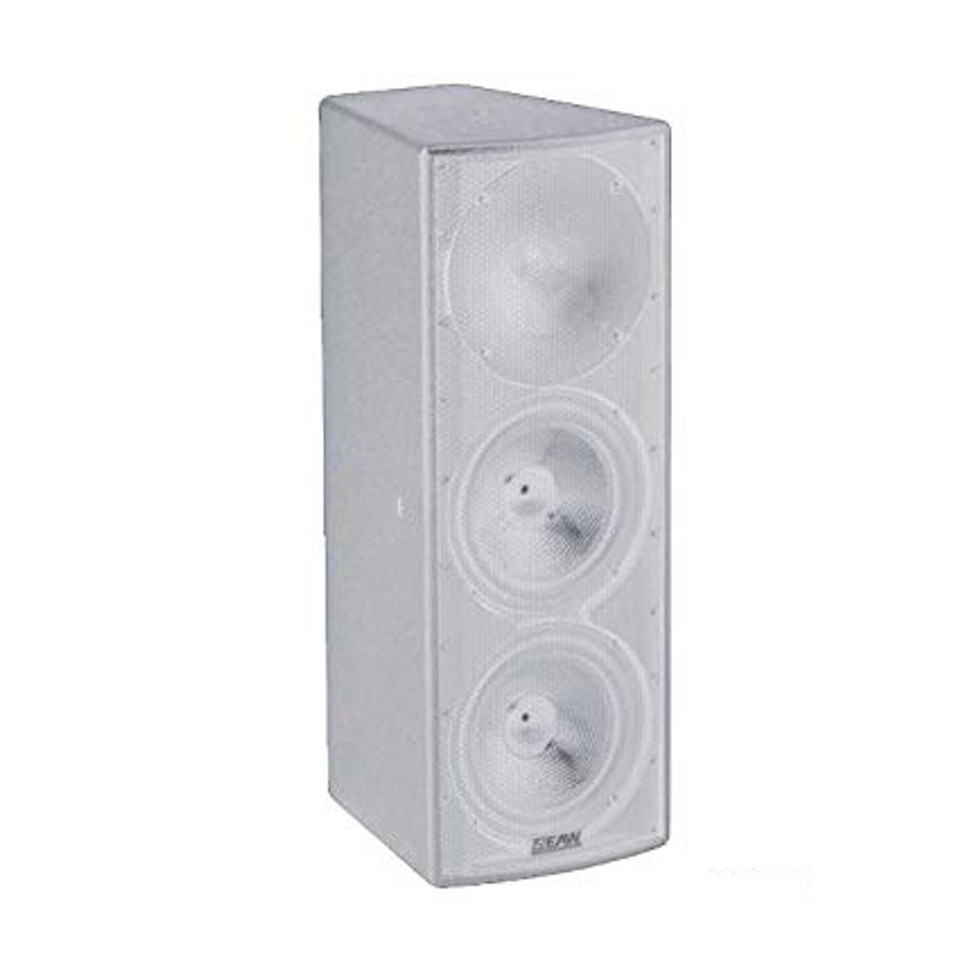

The JF80z is an ultra compact loudspeaker, engineered for exceptional, near-field performance. It provides surprisingly high output and exceptional fidelity for foreground and background music applications. Its speech projection capabilities also make it very effective as a fill or delay element in larger audio systems.
Unlike many compact loudspeakers, the JF80z produces the high impact, high definition sound projection expected in professional PA applications. Its wide angle projection makes audience coverage easy in a variety of situations. While the JF80z is well suited as is for many applications, the addition of a subwoofer can expand its capabilities for more demanding applications.
Foam-backed grilles hide the drivers from view for pleasing aesthetics. Top, bottom and side mounting points allow enclosures to be mounted in virtually any configuration using eyebolts or accessory brackets. Additional mounting points accept an OmniMount 30.0 Series or similar bracket and a third-party, external, stand adapter for pole mounting, such as the K&M 195/8 or Ultimate Support BMB-200K. Standard colors are black and white. Other colors can be specified as a special order items.
Features
- Compact loudspeaker with no compromise in sound quality
- For portable use or permanent installation
- 100° conical beamwidth
- Passive crossover for single amplifier operation
Specifications
Configuration
- Subsystem
- Transducer: LF 2x 6.5 in. cone; HF 1x 1 in. exit, 1.75 in voice coil compression driver
- Loading: LF – Sealed; HF – Waveguide Plate
- Operating Mode
- Amplifier Channels: Single amp LF/HF
- External Signal Processing: High Pass Filter
Performance
- Operating Range (-10 dB, Hz): 85 – 20k
- Axial Sensitivity (1W @ 1m, dB SPL): Full Range: 90
- Power Handling / Impedance (Watts @ Ohms): Full Range: 450 @ 8
- Calculated Maximum Output Peak (dB SPL): Full Range: 123
- Calculated Maximum Output Long Term (dB SPL): Full Range: 117
- Nominal Coverage (degrees): Horizontal: 100,Vertical: 100
- Powering: Passive
