Overview

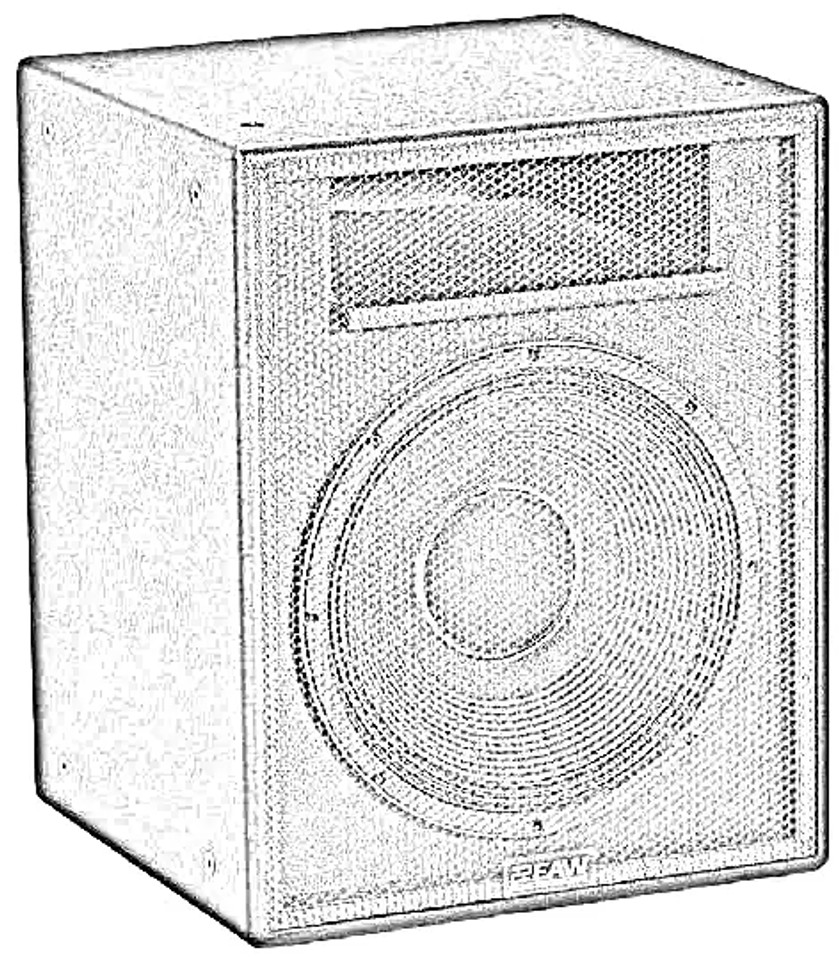

The SB products are EAW's premium subwoofers designed for the most demanding professional applications. A broad range of capabilities and sizes provide the designer with selections that can be specifically matched to their application. Top quality drivers, engineered by EAW, provide the highest output and best sonic performance possible for a given form factor. All SB models are direct radiating, with optimally tuned, vented enclosures. SB subwoofers are the choice where the best sonic performance, highest reliability, and most robust physical construction are required. The SB150zP is a high output, compact subwoofer system. This versatile, all-purpose subwoofer is designed for permanent installation where the solid-sounding output of a 15 inch driver is desired. The SB150zP works well with most full-range loudspeakers in a variety of applications including: small houses of worship, A/V systems, hotel ballrooms, meeting rooms, classrooms, exhibit areas, f/x reinforcement, cruise ships, cinemas, TV studios, restaurants, and small retail spaces. The SB150zP is designed to be used with today's sophisticated digital signal processing to optimize the LF response. EAW's MX Series processors are recommended for the required crossover and equalization.

Specifications

Operating Mode:

• Amplifier Channels - Single-amp: LF
• External Signal Processing - DSP w/1-way filter

Operating Range

• 34 Hz to 145 Hz

Nominal Beamwidth

• Horz 360degrees
• Vert 360degrees

Axial Sensitivity (SPL)

• LF (whole space): 94 dB - 34 Hz to 145 Hz
• (half space): 100 dB - 34 Hz to 145 Hz

Input Impedance (ohms)

• Nominal: LF 8
• Minimum: 6.9 @ 40 Hz
