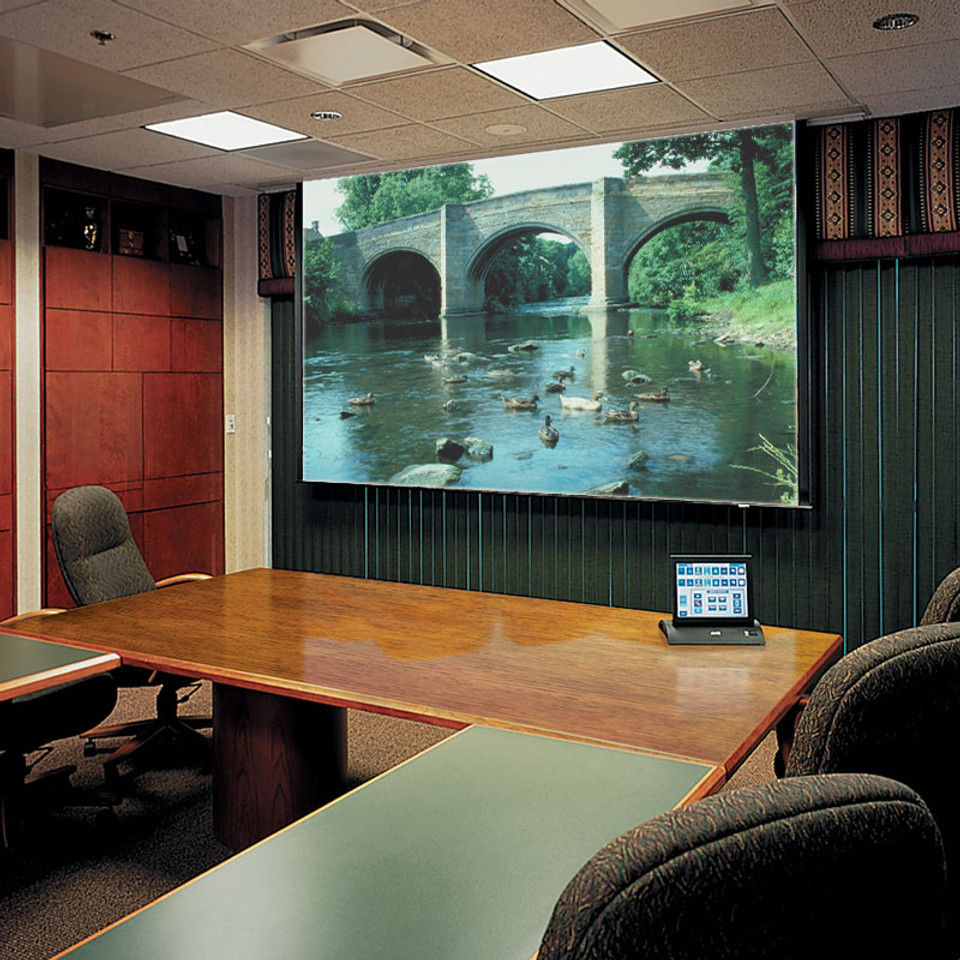

Smooth, clean design and complete concealment make the Ultimate Access E projection screen ideal for mid-sized training rooms, boardrooms, home theaters, and universities. The fully automatic ceiling closure panel provides complete concealment when screen is retracted for a smooth, clean look. This free-hanging electric screen maintains flatness due to the weight of the screen and bottom dowel. A bottom access panel door on the case makes service and maintenance easy.
- Case
dimensions are 9-7/8" high x 8" deep (25 cm x 20 cm), includes trim
flange. Built-in controls may increase case length. Mounting brackets
may add to case dimensions, see Submittal in the Technical Documents tab
for details.
- Maximum image width up to 12' (366 cm) wide, depending on surface selection.
- NTSC, HDTV AND 16:10 format have image area framed with black on all fours sides. Black side borders are available on request for AV format Screens.
- Sliding brackets on top of the case allow for adjustments when mounting. Sliding brackets inside case accommodate different size screens.
- Bottom access panel door is detachable or hangs in place with “T” bracket to provide accessibility for service or maintenance.
- Fully automatic ceiling closure panel provides complete screen concealment. Can be finished by contractor to match ceiling.
- Independently motorized ceiling closure panel opens into the case.
- Quick-connect wiring allows for early installation of the case with the addition of the screen later.
- Includes a 110V three-position switch (standard). Quiet, low voltage motors and 220V options are available.
- Low voltage video interface or other controls can be built into the housing for below ceiling access.
- White case standard, black available upon request
- Custom sizes available.
- UL Listed.
Specifications
- Surface material: ClearSound White Weave XT900E
- Image Format: 16:10
- Diagonal size: 165"
- Image/Viewable area: 87 1/2" x 140"
- Overall size: 92 1/2" x 144"
- Case length: 159"
- Product weight: 152 pounds
- Shipping weight: 202 pounds
