Overview

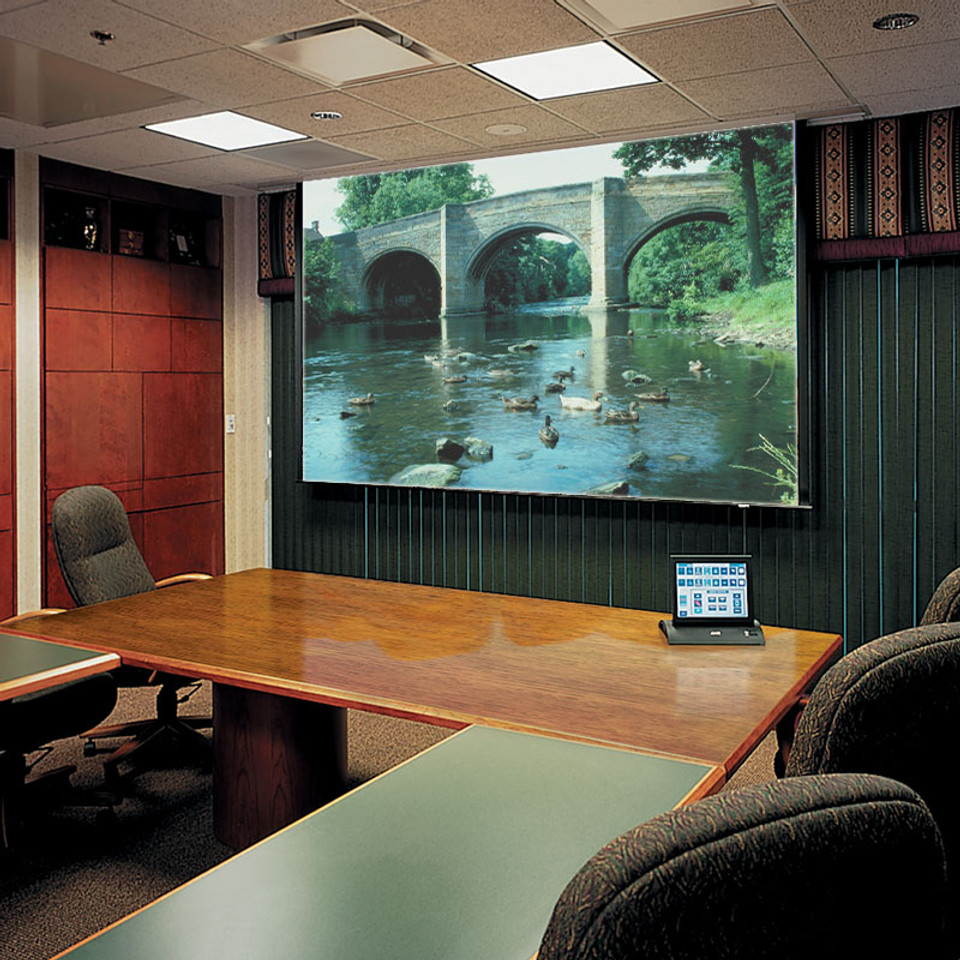

Smooth, clean design and complete concealment make the Ultimate Access E projection screen ideal for mid-sized training rooms, boardrooms, home theaters, and universities. The fully automatic ceiling closure panel provides complete concealment when screen is retracted for a smooth, clean look. This free-hanging electric screen maintains flatness due to the weight of the screen and bottom dowel. A bottom access panel door on the case makes service and maintenance easy.

Specifictions

• Case dimensions are 9-7/8" high x 8" deep (25 cm x 20 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details.
• Maximum image width up to 12' (366 cm) wide, depending on surface selection.
• NTSC, HDTV AND 16:10 format have image area framed with black on all fours sides. Black side borders are available on request for AV format Screens.
• Sliding brackets on top of the case allow for adjustments when mounting. Sliding brackets inside case accommodate different size screens.
• Bottom access panel door is detachable or hangs in place with “T” bracket to provide accessibility for service or maintenance.
• Fully automatic ceiling closure panel provides complete screen concealment. Can be finished by contractor to match ceiling.
• Independently motorized ceiling closure panel opens into the case.
• Quick-connect wiring allows for early installation of the case with the addition of the screen later.
• Includes a 110V three-position switch (standard). Quiet, low voltage motors and 220V options are available.
• Low voltage video interface or other controls can be built into the housing for below ceiling access.
• White case standard, black available upon request
• Custom sizes available.
• UL Listed.

Size & Part Number

• Part number: 142053ECQU
• Surface material: Contrast Grey XH800E
• Image Format: HDTV
• Diagonal size: 100"
• Image/Viewable area: 49" x 87"
• Overall size: 61" x 91"
• Case length: 106"
• Product weight: 98 pounds
  Shipping weight: 116 pounds
