Overview
Designed for large venues, Targa XL works well in conference and lecture halls, auditoriums, hospitals, hotels, boardrooms, or church applications. Housed in an attractive white, scratch-resistant aluminum case. Matching endcaps form universal mounting brackets for easy wall- or ceiling-mounting. Motor is mounted inside the roller providing this electric projection screen with a clean, low-profile appearance. This free-hanging screens maintain flatness due to the weight of the screen and bottom dowel.
Sizes and Part Numbers
- Part number : 116517
- Surface material : Contrast Grey XH800E
- Image Format : 16:10
- Diagonal size : 198"
- Image/Viewable area : 105" x 168"
- Overall size : 110" x 172"
- Case length : 180 7/8"
- Product weight : 193 pounds
- Shipping weight : 250 pounds
Specifications

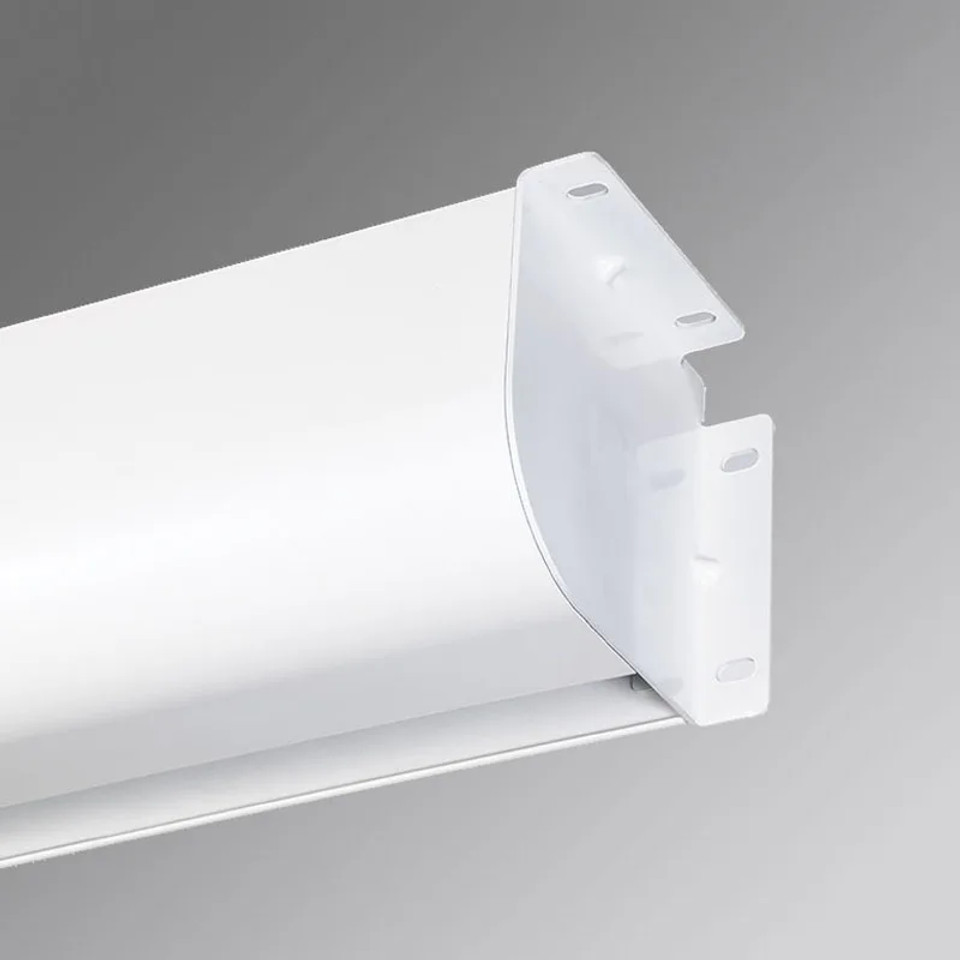

- Case dimensions: 6-3/4" h x 6-3/4" d (17 cm x 17 cm) including endcaps with universal mounting brackets.
- Housed in a fabricated extruded aluminum case with curved front, L-shaped back/top cover, and scratch-resistant white polyester finish (standard), black available upon request.
- Maximum image width up 16’ (488 cm) wide, depending on surface selection.
- NTSC, HDTV, and 16:10 formats have image area framed with black on all four sides. Black side borders are available upon request for AV.
- Black drop standard, depending on screen size. Extra drop above image area available upon request.
- Includes one 110-120V, 3-position switch (standard). Other control options are available.
- Optional Plug & Play with built-in low-voltage controller (LP) or with built-in quiet, low-voltage controller (QLP).
- Custom sizes available.
- UL Listed.
