Overview

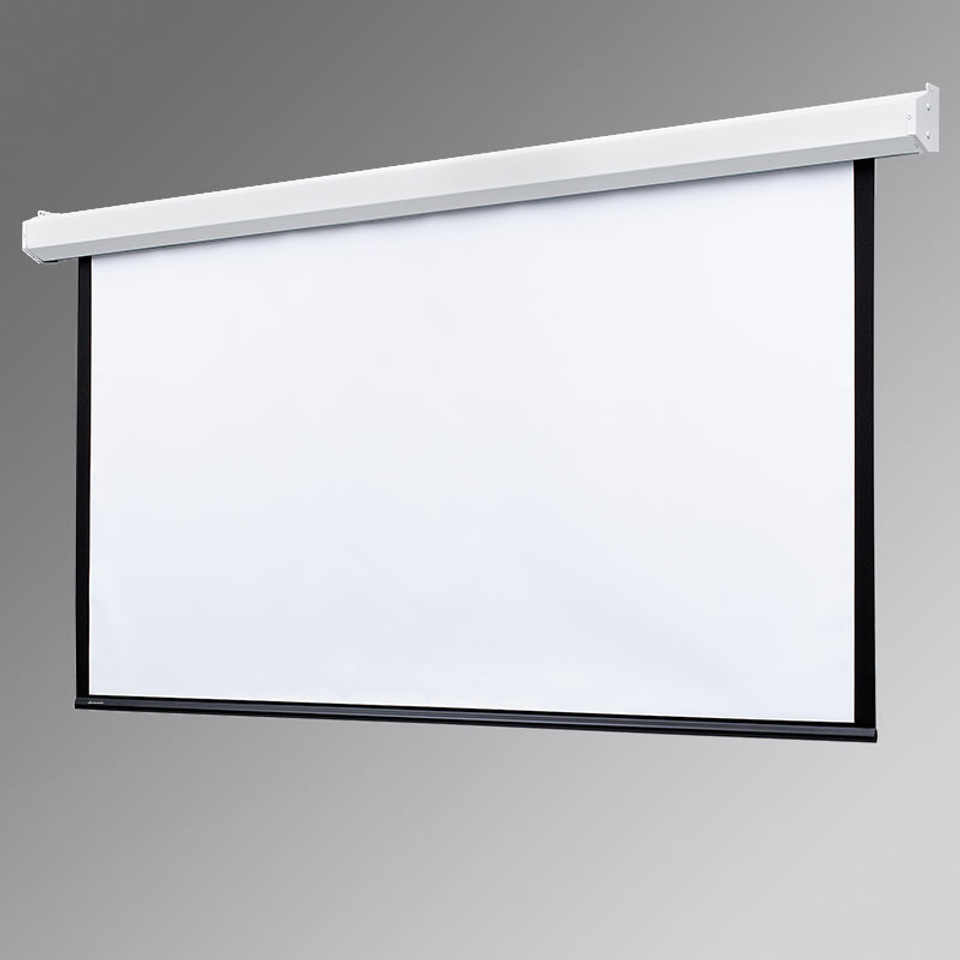

The popular and affordable Targa works well in conference and lecture halls, hospitals, hotels, restaurants, boardrooms, or church applications. A pentagonal steel case houses the projection screen. Matching endcaps form universal mounting brackets for easy wall- or ceiling-mounting. Motor is mounted inside the roller providing a clean, low-profile appearance for this electric projection screen. This free-hanging screens maintain flatness due to the weight of the viewing surface and bottom dowel.
Sizes and Part Numbers
- Part number : 116533Q
- Surface material : Contrast Grey XH800E
- Image Format : 16:10
- Diagonal size : 113"
- Image/Viewable area : 60" x 96"
- Overall size : 72" x 100"
- Case length : 107"
- Product weight : 45 pounds
- Shipping weight : 66 pounds
Specifications
- Case dimensions 5-7/8"h x 5-1/4" d (15 cm x 13 cm) including endcaps with universal mounting brackets. Optional built-in controls and extra drop may increase case length. Contact Draper® for dimensions.
- Maximum image width up to 12' (366 cm) wide, depending on surface selection.
- Housed in pentagonal steel case with a scratch-resistant white polyester finish (standard). Black available upon request. Larger sizes require a different case design and can be found in Targa XL.
- Includes matching endcaps with universal mounting brackets. Optional floating wall brackets grip the screen securely anywhere along the back of the case, and are barely visible
- NTSC, HDTV, and 16:10 formats have image area framed with black on all four sides. Black side borders are available upon request for AV.
- Black drop standard, depending on screen size. Extra drop above image area available upon request.
- Available with ceiling trim kit for ceiling-recessed installation. An additional 12" (30 cm) top drop is recommended for ceiling-recessed installation.
- Includes one 110-120V, 3-position switch (standard). Other control options are available.
- Custom sizes available.
- UL Listed.
