Overview

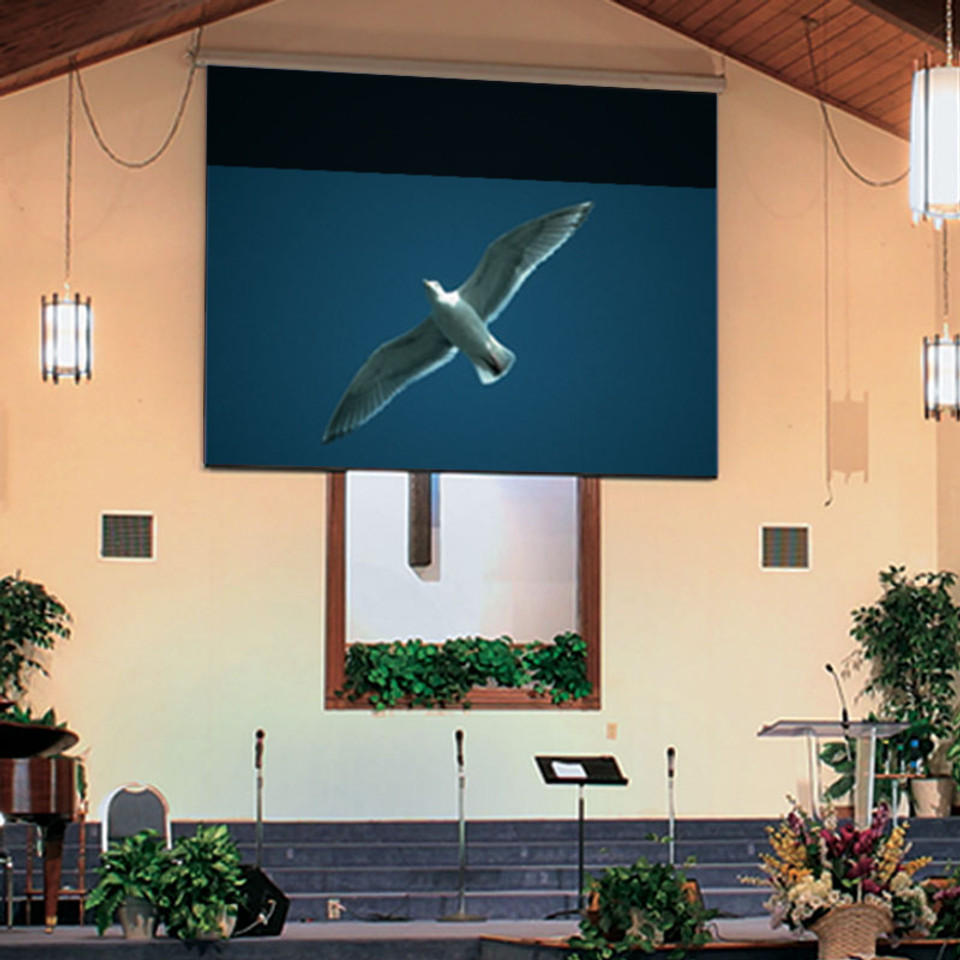

Housed in an attractive black pentagonal steel case the wall- or ceiling- mounted, tab-tensioned Premier provides an economical electric projection screen that is ideal for conference rooms, classrooms, or home theaters. Tab-tensioned screens offer a perfectly flat viewing surface and RF welded tabs for a more durable seal. The motor-in-roller is insulated to provide the Premier with a smooth, quiet operation.
Specifications
- Case dimensions 5-7/8"h x 5-1/4" d (15 cm x 13 cm) including endcaps with universal mounting brackets. Optional built-in controls and extra drop may increase case length. Contact Draper® for dimensions.
- Maximum image width up to 12' (366 cm) wide, depending on surface selection.
- Housed in pentagonal steel case with a scratch-resistant white polyester finish (standard). Black available upon request. Larger sizes require a different case design and can be found in Targa XL.
- Includes matching endcaps with universal mounting brackets. Optional floating wall brackets grip the screen securely anywhere along the back of the case, and are barely visible
- NTSC, HDTV, and 16:10 formats have image area framed with black on all four sides. Black side borders are available upon request for AV.
- Black drop standard, depending on screen size. Extra drop above image area available upon request.
- Available with ceiling trim kit for ceiling-recessed installation. An additional 12" (30 cm) top drop is recommended for ceiling-recessed installation.
- Includes one 110-120V, 3-position switch (standard). Other control options are available.
- Custom sizes available.
- UL Listed.
Size & Part Number
- Part number: 116499U
- Surface material: ClearSound White Weave XT900E
- Image Format: NTSC
- Diagonal size: 11'
- Image/Viewable area: 78" x 104"
- Overall size: 83" x 108"
- Case length: 116 ½"
- Product weight: 47 pounds
- Shipping weight: 65 pounds
