Overview
Ideal for conference rooms, classrooms, or home theaters, the economical Premier XL wall- or ceiling-mounted electric projection screen includes a tab-tensioned viewing surface. Draper tab-tensioned screens have perfectly flat viewing surfaces and RF welded tabs for a more durable seal. Premier XL comes housed in a fabricated extruded aluminum case with a curved front and L-shaped back/top cover with an attractive black finish.
Specifications

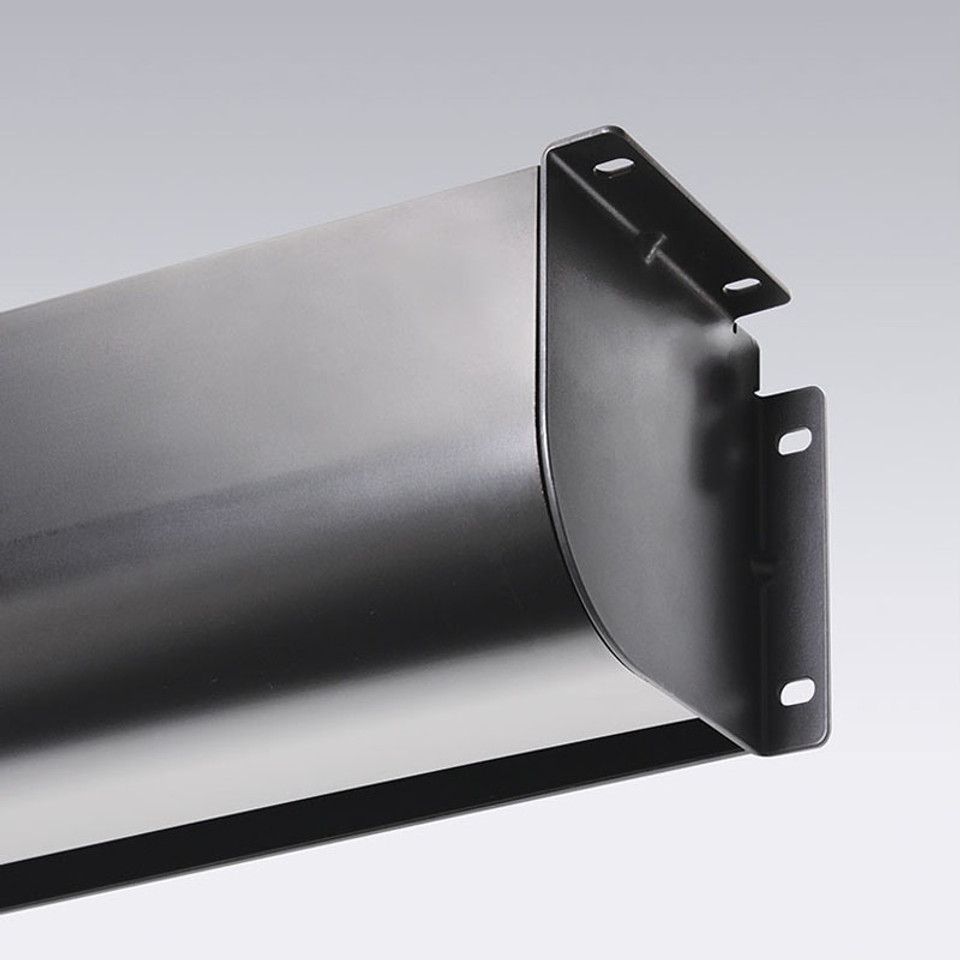

· Case dimensions: 6-3/4" high x 6-3/4" deep (17 cm x 17 cm). Housed in fabricated extruded aluminum with a curved front and L-shaped back/top cover with black finish.
· For smaller sizes the Premier is functionally similar to the Premier XL and available in sizes through 16' (488 cm) wide.
· Maximum image width up to 16’ (488 cm) wide, depending on surface selection.
· Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area. Optional extra drop available which may increase case length.
· Optional wall- or ceiling-mounting brackets for added flexibility.
· Optional Plug & Play with built-in low-voltage controller (LP) or with built-in quiet, low-voltage controller (QLP). Screens over 119" diagonal on 16:9 format on this screen cannot use QLP.
· Includes one 110-120V, 3-position switch (standard). Other control options are available.
· Custom sizes available.
· UL Listed.
Sizes & Part numbers
· Part number: 101820CD
· Surface material: CineFlex White XT700V
· Image Format: 21:9 Ultrawide
· Diagonal size: 182 3/8"
· Image/Viewable area: 71" x 168"
· Image/Viewable area 2:
· Overall size: 111 1/4" x 178"
· Standard 12" black drop:
· Case length: 186 7/8"
· Height range:
· Closed dimensions:
· Product weight: 179 pounds
· Shipping weight: 365 pounds
