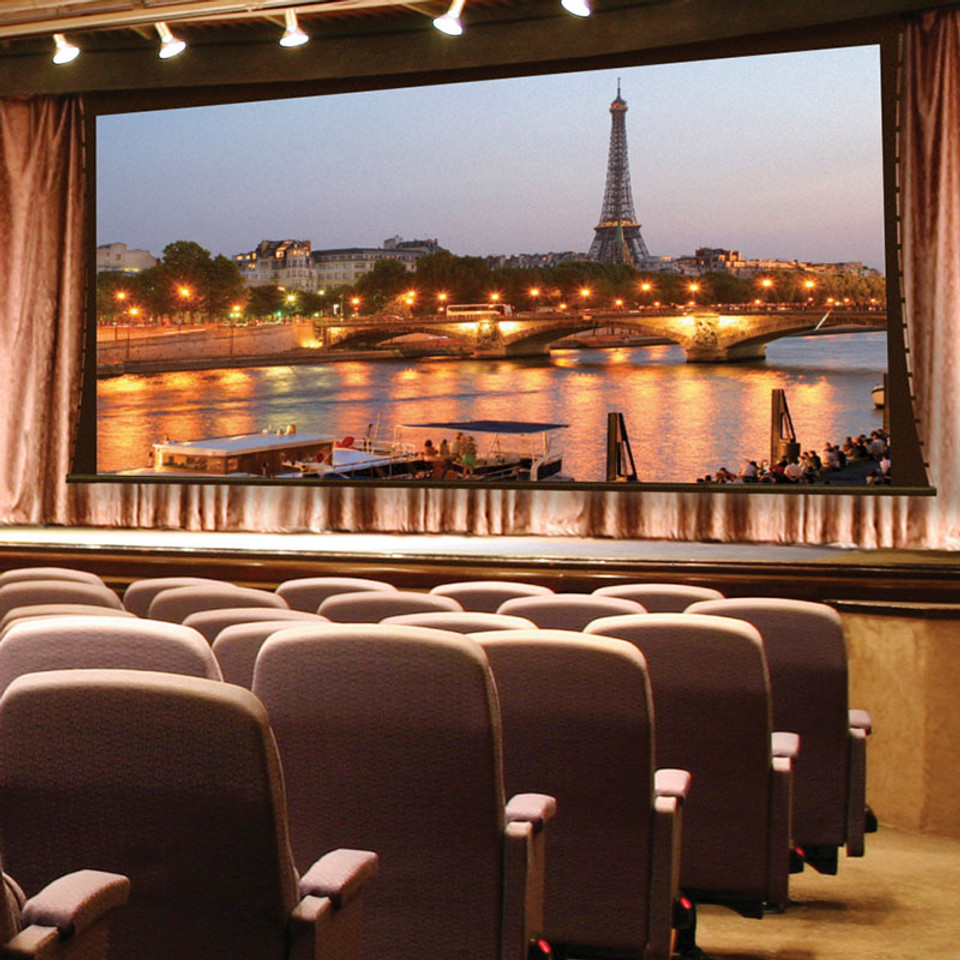

The size of the wall- or ceiling-mounted Paragon V electric projection screen makes it ideal for auditoriums or lecture halls. Our largest tab-tensioned screen offers a perfectly flat viewing surface for better image quality. Draper RF welded tabs create a more durable seal eliminating separation and stickiness. This heavy-duty screen provides smooth, quiet, and reliable operation.
- Case dimensions 13-1/4"high x 12" deep (34 cm x 30 cm). Optional extra drop may increase case length.
- Maximum image width up to 24' (732 cm) wide, depending on surface selection.
- Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.
- Includes extruded aluminum case with white finish. Optional wall-mounting brackets and ceiling trim flange kit.
- Bottom closure panel provides easy access for service or maintenance.
- Rear projection surfaces available.
- Includes a 110V, 3-position switch (standard). Low-voltage modules and controls or 220V options are available.
- Custom sizes available.
- UL Listed.
Specifications
- Surface material: Matt White XT1000VB
- Image Format: NTSC
- Diagonal size: 27' 6"
- Image/Viewable area: 194" x 260"
- Case length: 290 3/8"
- Product weight: 515 pounds
- Shipping weight: 880 pounds
