Draper 152205EC

Draper 152205EC

Draper 152205EC

Draper 152205EC

Acumen XL E, 255", 16:10, Contrast Grey XH800E, 220 V

SKU: DRP-152205EC
MSRP: $8,558.00
MAP: $6,846.00

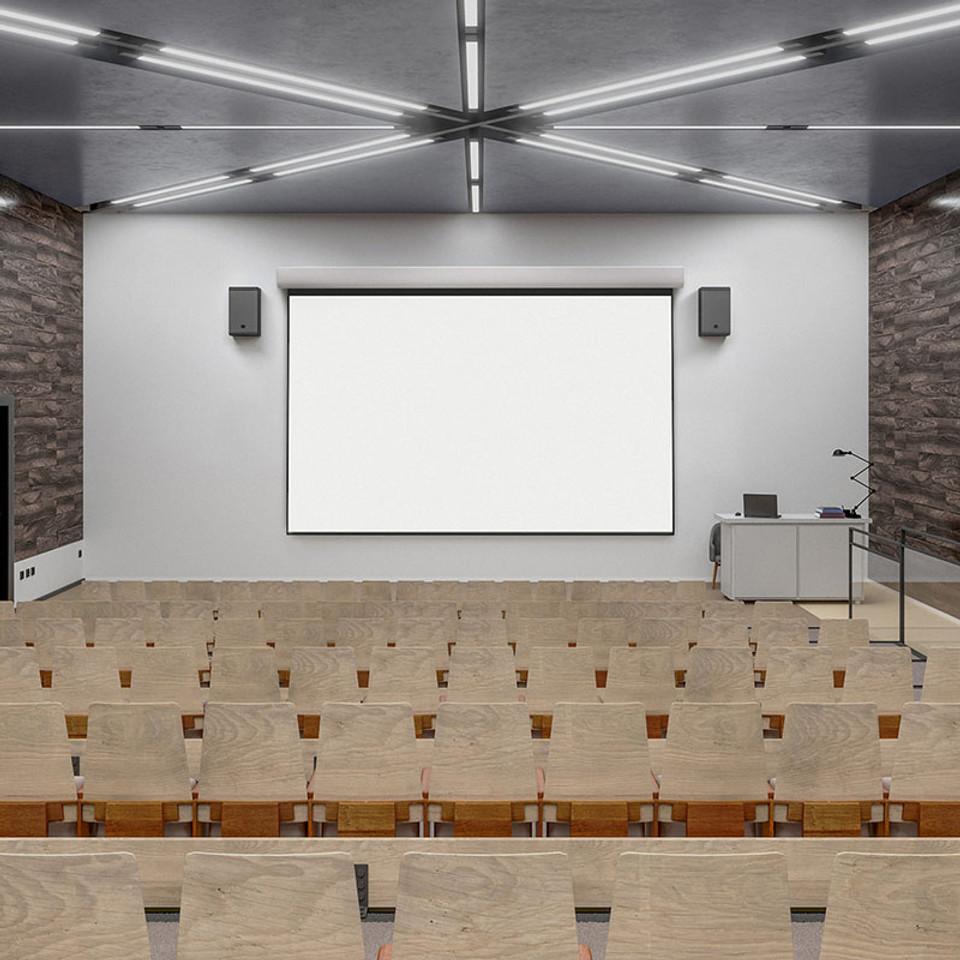

An attractive below-the-ceiling screen, Acumen® XL E accommodates larger sizes that blend seamlessly into today’s elegant interiors. The white powder coat finish and smooth, curved aluminum housing complement any room design. Floating mounting brackets and removable fascia simplify installation. A wide variety of motor and control options (including quiet and low voltage) are available.


  • Case dimensions: 9-1/4” high x 8-1/8” deep (235 mm x 206 mm). Maximum image width up to 18’ (5.5 m) wide.
  • Streamlined extruded aluminum case finished in white powder coat (standard), black available upon request.
  • Available with the OptiView line of viewing surfaces.
  • HDTV and 16:10 formats have image area framed with black on all four sides. Black side borders are available upon request for special sizes.
  • Black drop standard, depending on screen size. Extra drop above image area available upon request.
  • Ships with built-in low-voltage controller and wall switch (standard). Other control options are available.
  • Includes both floating mounting brackets and ceiling suspension brackets.
  • Custom sizes available.
  • UL Listed.


Specifications


  • Surface material: Contrast Grey XH800E
  • Image Format: 16:10
  • Diagonal size: 255"
  • Image/Viewable area: 135" x 216"
  • Overall size: 140" x 220"
  • Case length: 235 ¼"
  • Product weight: 221 pounds
  • Shipping weight: 433 pounds
