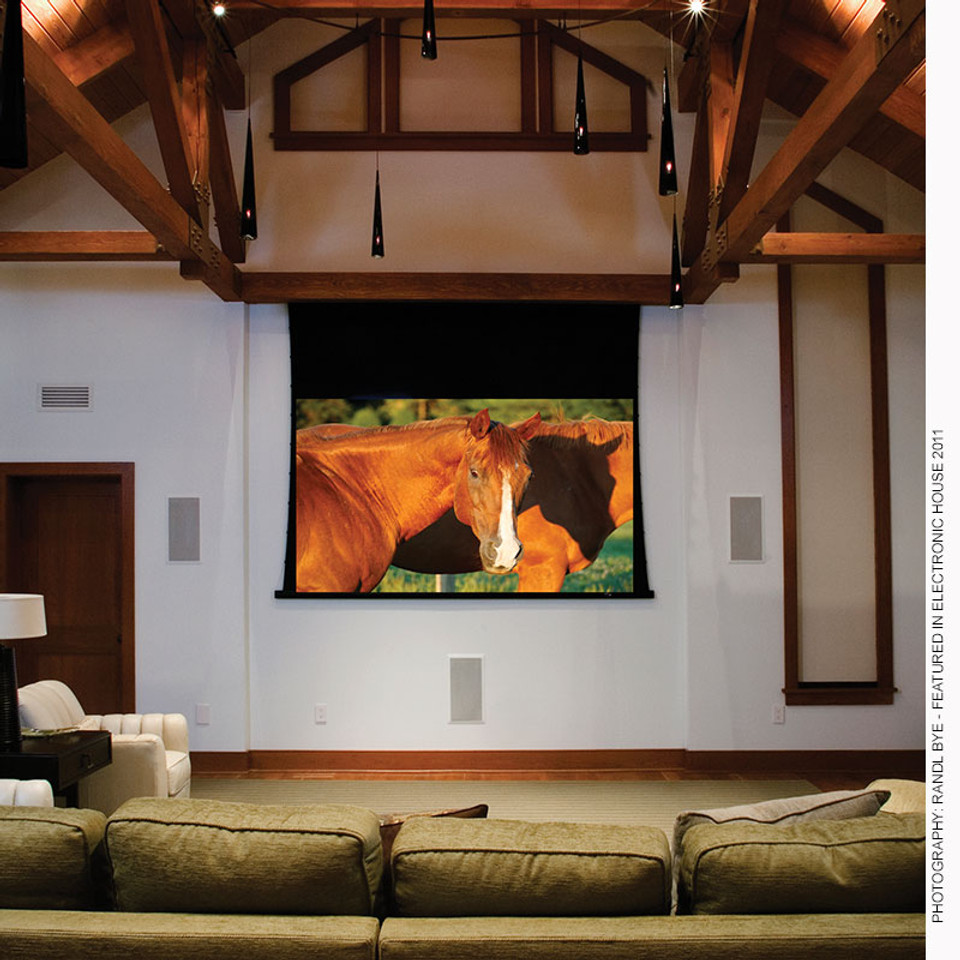

The ceiling-recessed Access V projection screen works well in universities, board rooms, training rooms, or home theaters. Ceiling-recessed screens are hidden from view when not in use providing complete concealment. Draper tab-tensioned screens have perfectly flat viewing surfaces and RF welded tabs for a more durable seal. Case includes a bottom access panel door for easy service and maintenance.
- Case dimensions are 7-3/8" high x 8-1/16" deep (19 cm x 20 cm), includes trim flange.
- Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal for details.
- Maximum image width up to 16' (488 cm) wide, depending on surface selection.
- Image area fully framed with black. Standard 12" (30 cm) black drop at top of viewing area.
- Adjustable or removable hoisting brackets included for easy lifting during installation.
- Sliding brackets on top of the case allow for adjustments for mounting.
- Sliding brackets inside case accommodate different size screens.
- Bottom access panel door detachable for easy service and maintenance.
- Quick-connect wiring allows for early installation of the case with the addition of the screen later.
- Low voltage, video interface or other controls can be built into housing for below ceiling access.
- Includes a 110V, 3-position switch (standard). Quiet, low voltage motors and 220V options available.
- White case standard, black available upon request.
- Custom sizes available.
- UL Listed.
Specifications
- Surface material: Matt White XT1000VB
- Image Format: NTSC
- Diagonal size: 240"
- Image/Viewable area: 144" x 192"
- Case length: 222 7/8"
- Product weight: 264 pounds
- Shipping weight: 689 pounds
