Overview

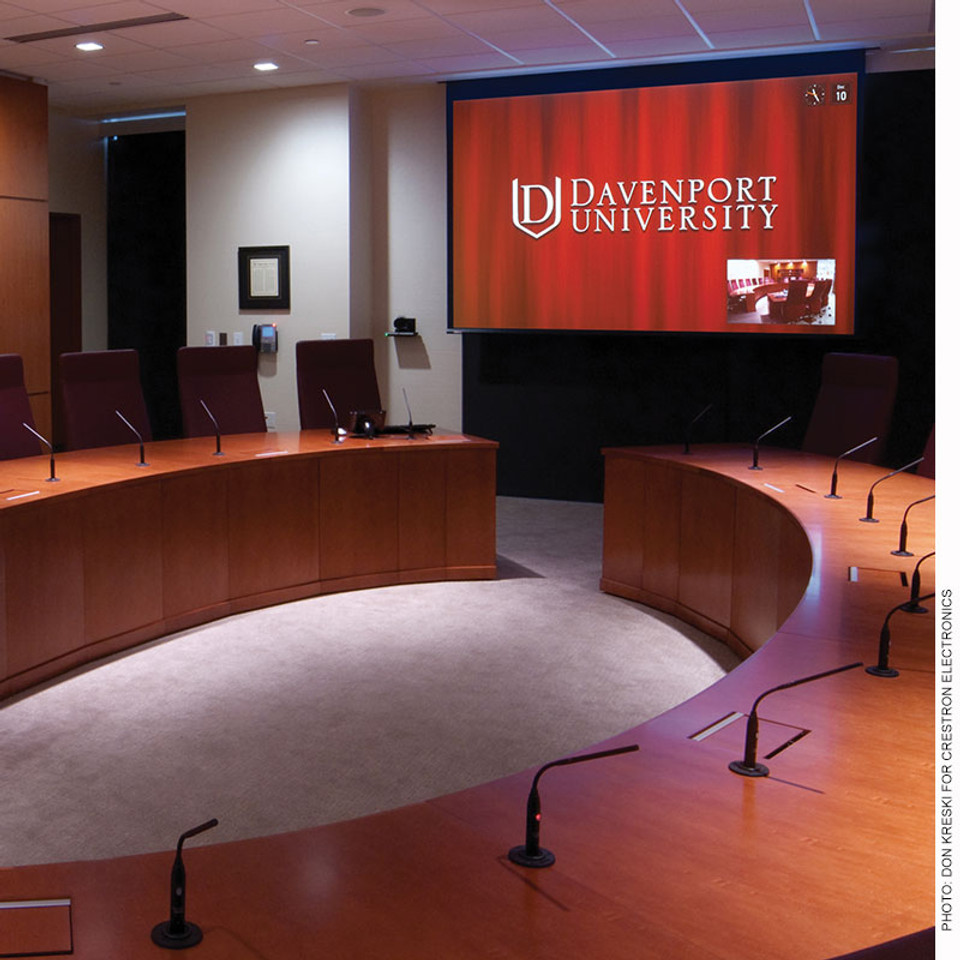

The ceiling-recessed Access E projection screen works well in universities, board rooms, training rooms, or home theaters. Ceiling-recessed screens are hidden from view when not in use providing complete concealment. Free-hanging screens maintain flatness due to the weight of the viewing surface and bottom dowel. Case includes a bottom access panel door for easy service and maintenance.
Specifications
· Case dimensions are 7-3/8" high x 8-1/16" deep (19 cm x 20 cm), includes trim flange. Built-in controls may increase case length. Mounting brackets may add to case dimensions, see Submittal in the Technical Documents tab for details.
· Maximum image width up to 16' (488 cm) wide, depending on surface selection.
· Adjustable or removable hoisting brackets included for easy lifting during installation.
· Black drop standard, depending on screen size. Extra drop above image area available upon request. Extra drop may increase case size.
· Sliding brackets on top of the case allow for adjustments when mounting.
· Sliding brackets inside case accommodate different size screens.
· Bottom access panel door is detachable for easy service or maintenance.
· Quick-connect wiring allows for early installation of the case with the addition of the screen later.
· Includes a 110V, 3-position switch (standard). Quiet, low voltage motors and 220V options are available.
· Low voltage, video interface or other controls can be built into housing for access from below ceiling.
· White case standard, black available upon request.
· Custom sizes available.
· UL Listed.
Sizes & Part Numbers
· Part number: 139088
· Surface material: Matt White XT1000E
· Image Format: 16:10
· Diagonal size: 189"
· Image/Viewable area: 100" x 160"
· Overall size: 105" x 164"
· Case length: 177 ¾"
· Product weight: 111 pounds
· Shipping weight: 172 pounds
