Overview
Designed to eliminate the extra step of finishing the screen with trim, the Advantage line of projection screens is designed with ceiling trim already in place. Once the screen is installed, the screen's trim conceals the rough opening eliminating the need to complete additional trim work.Sliding installation brackets make it easy to attach the screen housing to the structure above the drop ceiling.
All Deluxe screens feature a closure door that hides the open space and screen in the ceiling, providing a cleaner aesthetic.

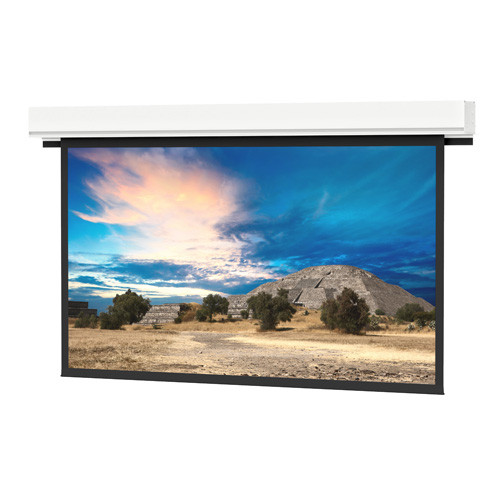

The Advantage® Deluxe Electrol® screen features simple in ceiling installation that can be done in two stages. The screen case can be installed during the rough-in construction stage and the fabric assembly can be completed during the finishing stage.
The Advantage Deluxe Electrol does not include the Tensioning Cable System. See the Tensioned Advantage Electrol Deluxe to ensure an even lateral tension.
- Standard Low Voltage Control (LVC) to keep your screen operation flexible
- UL Plenum rated case
- White powder-coated closure doors and case for a clean aesthetic
- Available with SCB-100 and SCB-200 (RS-232 serial control board) or Video Projector Interface (screen trigger) built into the case
- Decora-style, three-button wall switch
- Standard black backing retains projected brightness
- Seamless surfaces in all models
Specifications
- Aspect Ratio - 16:9
- Projection Screen Mount Type - Ceiling-Recessed
- Projection Screen Surface - White
- Projection Screen Surface - High Contrast
- Spec Sheet available - Yes
- Screen Material:High Contrast Matte White
- Screen Width:2438.40 mm
- Screen Height:1371.60 mm
- Screen Size (Diagonal):2794 mm
