Overview

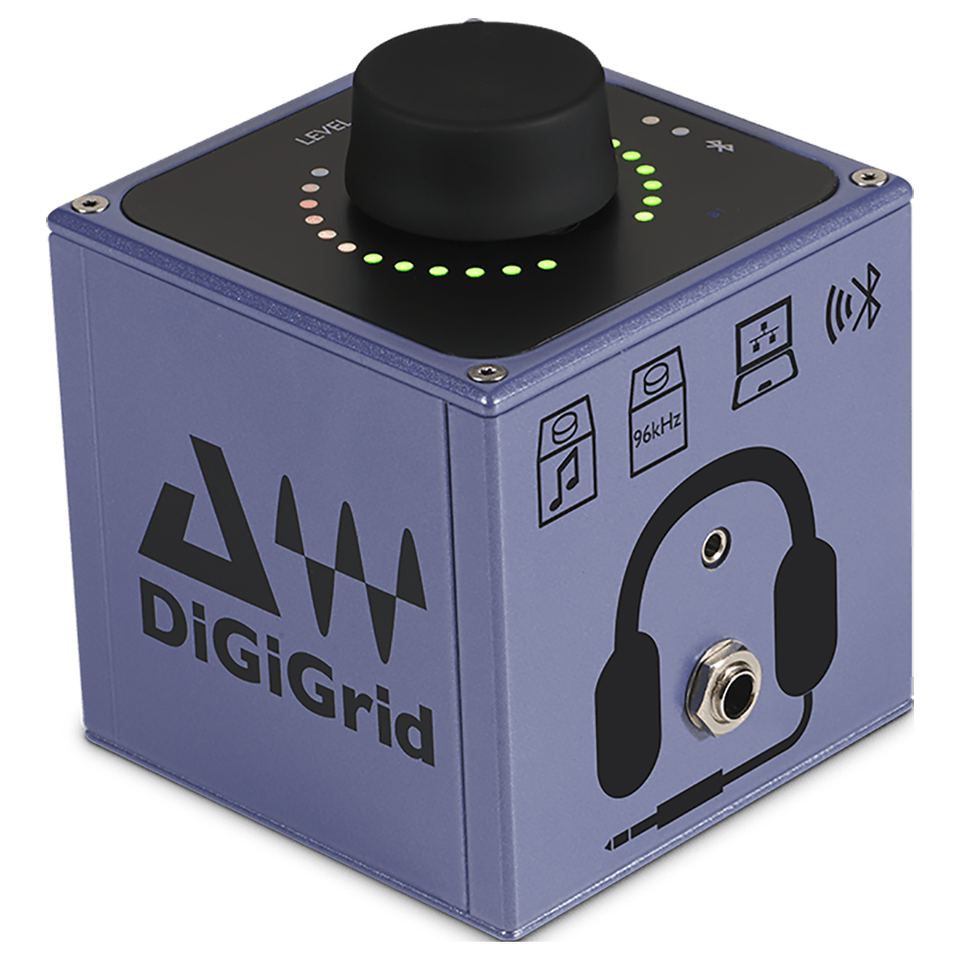

It may be small – but looks can be deceptive. The DiGiGrid Q Headphone Amplifier is one of DiGiGrid’s new series of high-end audio interfaces, and is as powerful as it is sleek. This smart little box has been designed to drive headphones at serious volume levels, and is fully controllable to suit any audio application: from home recording projects to creative rehearsals, to major studio sessions and audiophile headphone listening – in fact, all audio applications where precise monitoring is required.

DiGiGrid Q features 1/4-inch and 3.5 mm outputs, so it can accommodate any headphones up to 600 ohm. It has four monitoring input options to suit all users: XLR for professional use, Ethernet to connect to a SoundGrid network, analog for consumer audiophiles, and Bluetooth for a fun and fast experience working directly with your digital music collection.

The interface integrates seamlessly with any other SoundGrid product, should you wish to expand your network and add a high-end headphone amp to your studio's live room, vocal booth, control room, or live FOH or monitors setup.

DiGiGrid Q also benefits from a non-slip base and optional mic-stand adaptor plate. It is powered by a twist-lock 12V DC power supply (provided as standard), or Power-over-Ethernet (PoE) for maximum flexibility and easy setup, anywhere you want it.

At home or in the office, supercharge your computer’s headphone output with this high-power, high-fidelity output, or expand the experience of listening to your favorite music tracks via Bluetooth or your Hi-Fi’s phono connection. When using headphones, DiGiGrid Q provides massive control and enormous amounts of excitement. As your system grows, simply connect more I/O and DSP from the DiGiGrid rackmount series.

With just one simple Ethernet connection to your Mac or PC, you now have a simple standalone high-quality audio interface that you can use with any DAW.

Features

• Just 9 cm³ (3.54" cubed) cubed in a high-grade aluminum extrusion for rugged yet flexible use
• 4 types of high-quality monitoring inputs to suit all users
• AES/EBU on XLR for professional audio applications
• Connects via a single Ethernet cable (Cat 5e/Cat 6)
• RCA for consumer audiophiles
• Bluetooth for working directly with your digital music collection
• 1/4" or 3.5 mm jack sockets for your preferred headphone choice
• Compatible with SuperRack, MultiRack, eMotion LV1, SoundGrid Studio

Specifications

General

• Line Input Impedance: 10KΩ
• AES/EBU Input Impedance: 110Ω
• Line Input Level: +2 dBu for full scale
• Frequency Response: -3 dB <10 Hz to 100 kHz (Analog to Analog)
• Harmonic Distortion: 0.005%

Headphones

Gain Range Infinity: To +10 dB
Max Output Level:
Load    RMS
16Ω      2.3V
32Ω      3.7V
100Ω    6.0V
200Ω    7.5V
600Ω    8.8V

Dimensions

• Width: 9 cm / 3.54 inches
• Height: 11.35 cm / 4.46 inches
• Depth: 9 cm / 3.54 inches
• Device Weight: 0.6 kg / 1.32 lbs
• Package Weight: 1.81 kg / 4 lbs
