Overview

It provides power to the camera. (camera not included). Note: Requires HS-1600T MK II or HBT-11)

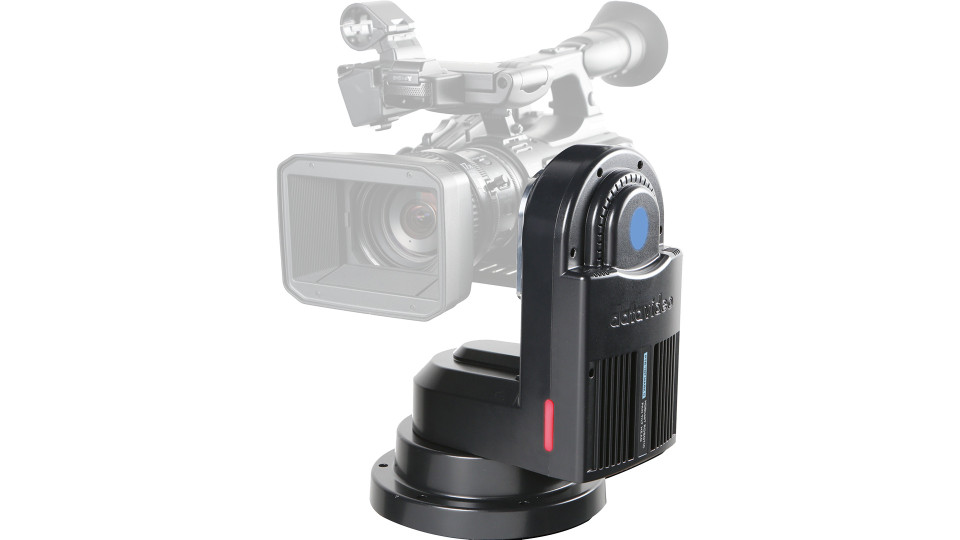

Turn camcorder into PTZ

Control of Pan, Tilt, Zoom. Supports Zoom control of Datavideo block cameras and various brand lens.

Wide Range of Compatible Cameras Supported

The PTR-10T implements LanC control that is compatible with a wide range of professional video camcorders, allowing you to select the best camcorders for your needs.

Multiple signal interface

PTR-10T supports a lot of signal interface for passing through the remote head. Amongst these interfaces are SDI, HDMI, RS-232, RS-422, HDBaseT, Tally, and LANC.

Cost-Effective

Marketed at competitive price point, PTR-10T makes it very affordable to upgrade your studio existing cameras for multi-camera remote productions.

Built-in Tally light

With the big tally light in the front to show the status of your camera.

Diversified controller options

Compatible with Serial, Ethernet, and Lanc. Datavideo RMC-180, RMC-300C, HS-1600T series will fit your need.

Light Weight, Strong, and sturdy design

With a weight of 3.4 kg, PTR-10T is built from aluminum alloy, making it a very sturdy base for your camera. It can support cameras up to 4 kilograms.

HBT-12

Long distance 4K solution and carry everything in one ethernet cable

The HBT-12 is an HDBaseT receiver designed to interface between transmitting and receiving devices. The receiver accepts up to 4K image quality video.

With the 56V power connected to one end of the HBT-12 HDBaseT receiver

The HBT-12 will thus be able to power the transmitting device by PoE plus technology (PoE++).

HDBaseT connection between the transmitter and the receiver can be established using a single Ethernet cable.

HDMI video, DVIP control commands and power (PoE++) can be transmitted between the transmitter and the receiver over just one cable.

Long distance 4K solution

Support up to 4K 25/30p and receives up to 4Kx2K video from the transmitter.

Aluminum Alloy and Heavy Duty Design

Super sturdy and durable. HBT-12 has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.

What is HDBaseT ?

HDBaseT can be used to power and control cameras, as well as transmit video signals over long distances for many video production applications. In this episode of Tech Tip Tuesdays, we explain how you can save time and money by using HDBaseT. HDBaseT allows you to transmit video, control, tally, and power over single CAT 6 cable. This means you no longer need to run multiple cables for video, control, and power for your cameras!

Datavideo offers several HDBaseT PTZ Cameras and HDBaseT Mobile Video Switchers to help you take advantage of the many workflow benefits that HDBaseT technology offers.

Specifications
