Overview
Long distance 4K HDBaseT Transmitter that carries 4K video, control, tally, and power over one ethernet cable

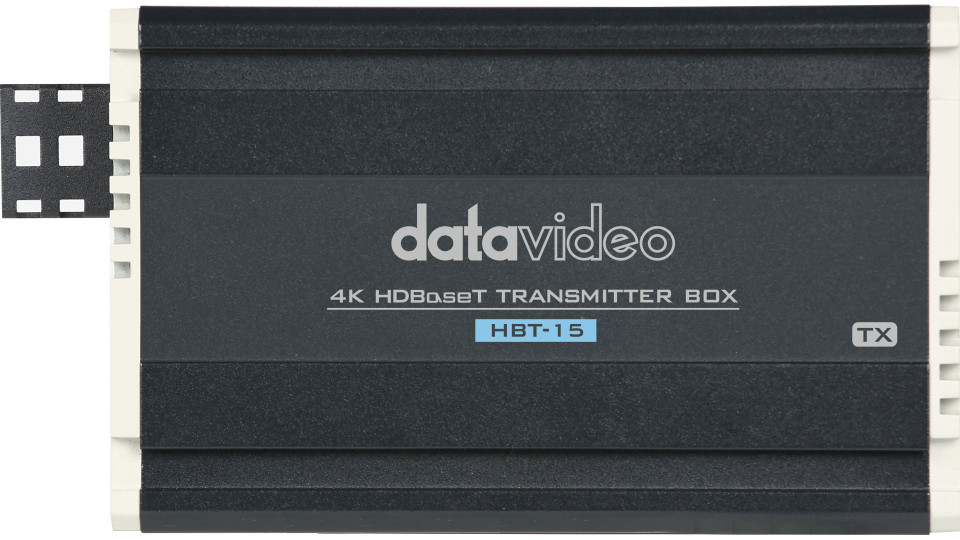

The HBT-15 is an HDBaseT Transmitter designed to interface between transmitting and receiving HDBaseT devices. The HBT-15 Transmitter transmits up to 4K 2160P image quality video up to 100m.
Transmits HDMI signals up to 100m at 2160p using Cat 6A or above cable.
The extender supports Ultra HD and Full HD resolution and the accompanying digital audio.
HDMI Deep Color supports better color depths
HDMI Deep Color supports better color depths. To giving your display device a great image.
Model Number
HBT-15
Video/Audio Input
HDMI 2.0 x1
Video/Audio Output
HDBaseT RJ-45 x1
Supported Video Format
2160p: 60/59.94/50/30/29.97/25
1080p: 60/59.94/50/30/29.97/25
1080i: 60/59.94/50
720p: 60/59.94/50
480i: 59.94
576i: 50
Video Process
4K2K60 4:4:4 8bits
4K2K60 4:2:0 10bits
Video bandwidth
Single-link 600MHz [18Gbps]
DVIP
RJ-45 x1(output)
RS-422/ RS-232
RJ-45 x1
Power
DC Out: 12V 30W
HDBaseT Distance
2160p60/59.94/50 Up to 100m by CAT. 6A Cable (Resolution downward supported)
HDMI compliance
HDMI 2.0
HDCP compliance
HDCP 2.2/1.4 (Bypass)
Audio support
Surround sound (up to 7.1ch)
Dimension (LxWxH)
157 x 85 x 46mm
Weight
474 g
Operating Temp. Range
0~40 °C
What's in the Box
1 x HBT-15 main unit
1 x DC to DC cable
