Overview

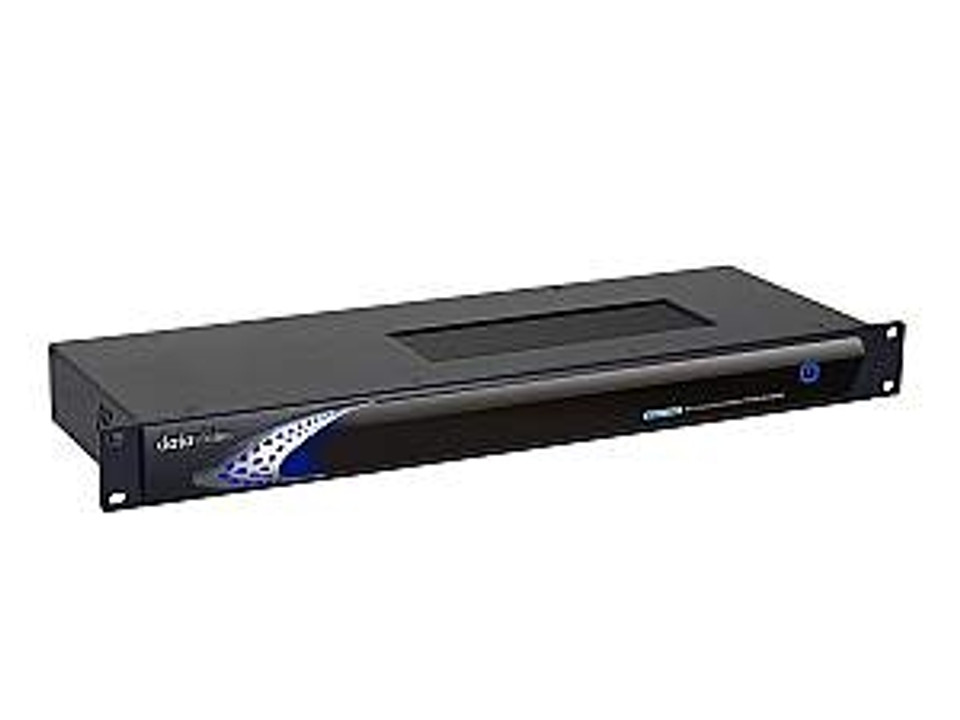

Datavideo KMU-100C bundle combines the KMU-100 4K Multicamera Processor and hardware control panel RMC-185 to provide a unique 4K video production solution. This kit allows you to connect up to two UHD 4K camera signals and output each as four separate 1080p images over SDI connections. Each set of four images will be displayed as a separate screen in 4 quadrants.
Specifications
| Supported Video Input Resolution | 1080p 23.98/24/25/29.97/30 1080i 50/59.94/60 1080PsF 23.98/24/25/29.97/30 720p 50/59.94/60 |
| Video Output | 2x SDI Output: 12Gb/s or 3Gb/s SD/HD/4K. Supports single link 4:2:2 6x SDI Output: 3Gb/s SD/HD/4K. Supports single link, dual link, and quad link 4:2:2 |
| Support Video Output Resolution | 1080p 25/29.97/30/50/59.94/60 1080i 50/59.94/60 720p 50/59.94/60 625/50i PAL, 525/59.94i NTSC |
| Multiview Out | 2x HDMI 1.4 |
| Multiview Mode | Preview, Motion, Quad |
| Audio Input | SDI: 16 Ch embedded in HD/4K. 8 Ch embedded in SD HDMI: 8 Ch embedded in SD, HD and Ultra HD 4K |
| Audio Output | SDI: 16 Ch embedded in HD/4K. 8 Ch embedded in SD HDMI: 8 Ch embedded in SD, HD and Ultra HD 4K |
| Audio Sampling | Television standard sample rate of 48 kHz at 24-bit |
| Reference Input | Blackburst, Tri-level |
| Control Interface | Ethernet RJ45 for control, configuration and updates RS-232 x1 input for controlling configuration RS-422 x1 input with external keyboard support GPIO x1 |
| Controller | RMC-185/RMC-185+ |
| Power Supply | DC 12V 5A |
