Overview
Long distance 4K solution and carry everything in one ethernet cable

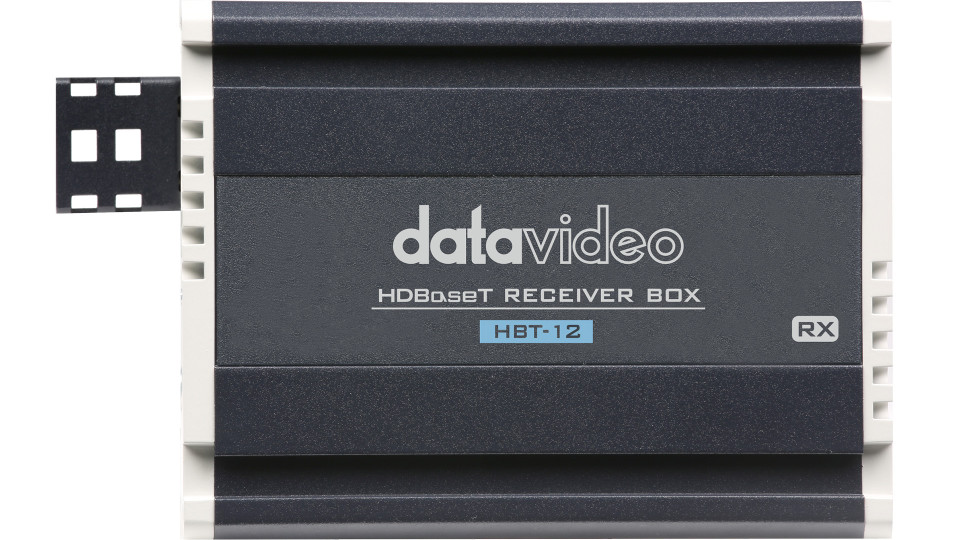

The HBT-12 is an HDBaseT receiver designed to interface between transmitting and receiving devices. The receiver accepts up to 4K image quality video.
With the 56V power connected to one end of the HBT-12 HDBaseT receiver
The HBT-12 will thus be able to power the transmitting device by PoE plus technology (PoE++).
HDBaseT connection between the transmitter and the receiver can be established using a single Ethernet cable.
HDMI video, DVIP control commands and power (PoE++) can be transmitted between the transmitter and the receiver over just one cable.
Specifications:
Model Number
HBT-12
Video/Audio Input
HDBaseT RJ-45 x1
Video/Audio Output
HDMI x1
Supported Video Format
3840x2160p: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50, 720p: 60/59.94/50
DVIP
RJ-45 x1(input)
RS-422/ RS-232
RJ-45 x1(input)
Power
DC IN: DC 56V
PoE Output
65W
HDBaseT Distance
1080p@60 100m by CAT.7 cable
4K2K@30 70m by CAT.7 cable
Dimension (LxWxH)
132 x 85 x 45 mm
Weight
400 g
Operating Temp. Range
0~40 °C
What's in the Box
1 x HBT-12 main uni
1 x AC cord
1 x DC 56V power adaptor
