Datavideo TLM-170KM

17" LED monitor (4K resolution panel) with HD-SDI and HDMI inputs. It supports up to 2160p resolution and 12G-SDI. (1U Rack Mount - pull out, flip up version)

SKU: DV-TLM-170KM

MSRP: $3,149.00

MAP: $3,149.00

Description

Overview

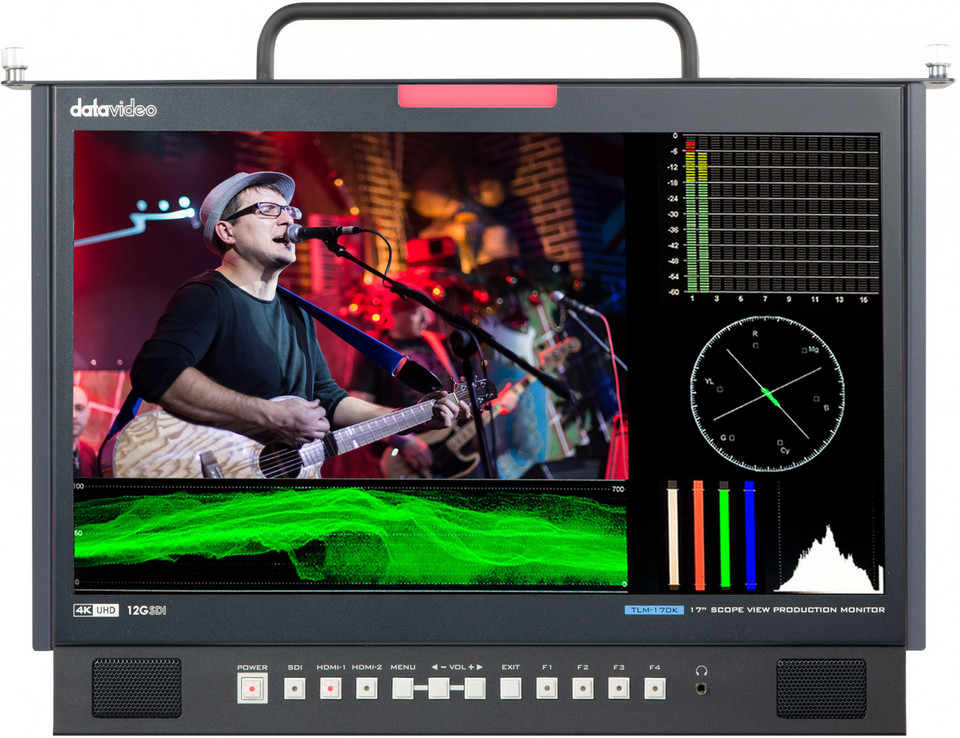

TLM-170KM 17” ScopeView Production Monitor-Pull-Out

The TLM-170KM is a pull-out 17-inch 4K UHD LCD monitor which comes with an UHD 3840 x 2160px IPS panel. The panel has a 178 degrees wide viewing angle and a brightness of 300 cd/m2 and 1000:1 contrast ratio. The field monitor features the 12G-SDI and HDMI 2.0 inputs with loop-through outputs, supporting up to DCI 4K and Ultra HD signals on both input and output.

The TLM-170K series have a variety of professional and helpful monitoring features, including waveform, vector scope, focus peaking, false color, histogram, peaking, zoom, screen markers, image flip, and more. Moreover, it also supports HDR for HLG and SMPTE 2084, and the presets of color space include Rec 709 and DCI P3. The TLM-170K series are ideal for broadcast and live production applications.

Spectacular 4K Resolution High Brightness and Contrast

The TLM-170KM series apply superior Ultra HD 3840 x 2160px IPS panel. The high brightness and high contrast panel provides 8 million pixels resolution which is four times the details than Full HD panel.

Specifications

Model Number

TLM-170KM

Screen

17.3" LED Backlit

Chassis

Pull-Out

Resolution

3840 × 2160

Viewing Angle

(H) +89/-89°
(V) +89/-89°

Luminance/Contrast

300cd/m²
1000:1

Video Inputs

1 x 12G SDI
2 x HDMI (2.0)

Loop Through

1 x 12G SDI
1 x HDMI (2.0)

Supported Input Resolutions

SDI:
4096x2160p (23.98/24/25/29.97/30/50/59.94/60)
3840x2160p (23.98/24/25/29.97/30/50/59.94/60)
4096x2160Psf (23.98/24/25/29.97/30)
3840x2160Psf (23.98/24/25/29.97/30)
1920x1080p (23.98/24/25/29.97/30/50/59.94/60)
1920x1080i (50/59.94/60)
1920x1080Psf (23.98/24/25/29.97/30)
1280×720p (23.98/24/25/29.97/30/50/59.94/60)
525i, 625i
HDMI:
4096x2160p (23.98/24/25/29.97/30/50/59.94/60)
3840x2160p (23.98/24/25/29.97/30/50/59.94/60)
1920x1080p (23.98/24/25/29.97/30/50/59.94/60)
1920x1080i (50/59.94/60)
1280×720p (23.98/24/25/29.97/30/50/59.94/60)
720 x480i (NTSC), 720 x576i (PAL)
640 x800, 800 x600, 1024 x768, 1280 x800

Aspect Ratio

16:9, 4:3

Aspect Marker

YES

Safty Marker

YES

Tally LED

Live (Red)
Cued (Green)

Audio In/Out

Input: Embedded Audio (48KHz sampling)
Output: Analog stereo (Phone Jack)
Speaker x 2 (3W)

Special Features

waveform,
vector scope,
Focus Peaking,
False Color,
Exposure (Zebras),
Histogram,
HDR / SDR,
Time Code,
Audio Vector,
Camera Log,
Gamma, Marker,
Pixel to Pixel,
Zoom,
H/V Delay,
DSLR,
Freeze,
Image Flip,
Check Field,
Level Meter,
Color Bar,
Color Calibration.

Dimension (WxHxD)

403 x 305 x 37 mm

Weight

5.2kg

Operating Temp. Range

0~40 °C

Power

DC 12V, 40.1W

What's in the Box

1 x TLM-170KM product
1 x AD Switch DC 12V
4 x Screw φ4.0*6m/m
8 x Screw φ3.0*6m/m
8 x Screw M5 x 10mm
5 x Cable tie
