Overview
The DECO series is a family of ceiling loudspeakers with minimum visual impact thanks to an innovative mechanical design that incorporates grilles attached with powerful neodymium magnets that cover the entire system so that it can blend seamlessly into its environment. All models in the series include loudspeakers with polypropylene cones, making them highly reliable in humid conditions. The design of the rubber mounts provides a high degree of movement and reduces low-frequency distortion levels. All models in the series are white, but black grilles are available as an option when used in spaces with dark ceilings.

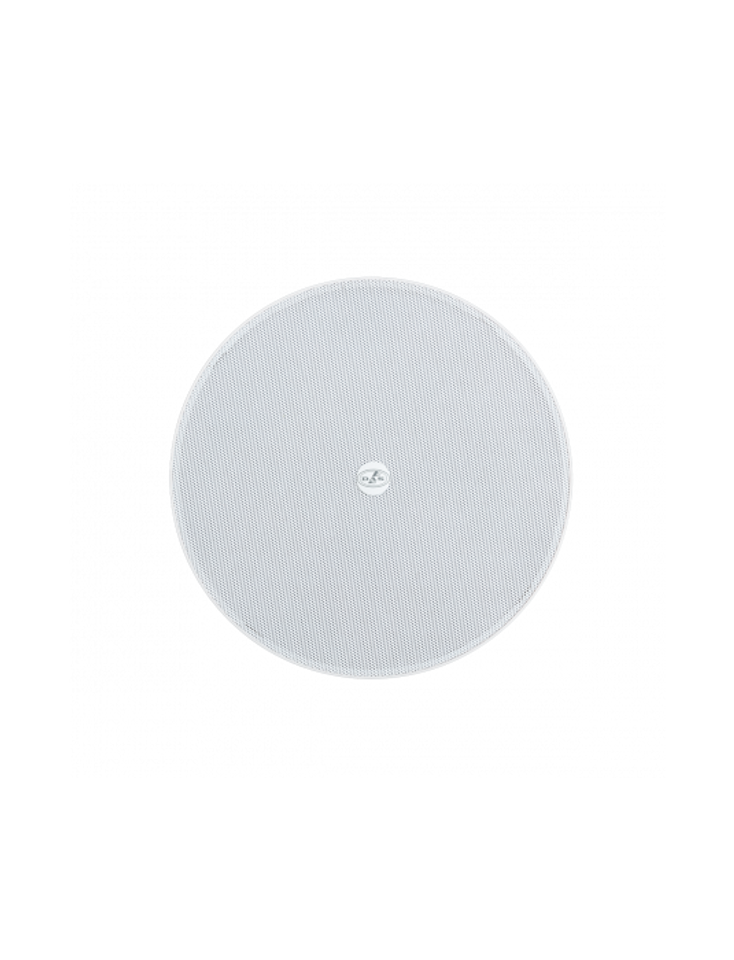

The DECO-5 model is a 5” full-range ceiling-mounted acoustic system. It does not include a transformer and is specifically designed for low impedance. It is equipped with a 5.25” double cone loudspeaker and a 1” voice coil. A frameless grille design means the system extends just 3 mm from the ceiling, making it practically invisible.
Specifications
| Performance | |
| Frequency Range (-10 dB) | 70 Hz – 15 kHz |
| Nominal Impedance | 8 ohms |
| Conical Coverage | 100º |
| RMS Power Handling | 20 W |
| Peak Power Handling | 80 W |
| On-axis Sensitivity 1W/1 m | 89 dB SPL |
| Maximum Peak SPL at 1 m | 108 dB |
| Recommended Amplifier | INTEGRAL-A402 INTEGRAL-A404 INTEGRAL-A1002 INTEGRAL-A1004 INTEGRAL-A1602 INTEGRAL-A1604 INTEGRAL-MA1004 INTEGRAL-MA1604 |
| Recommended Processor | INTEGRAL-M88 INTEGRAL-MA1604 INTEGRAL-MA1004 |
| Connectors | |
| Audio Input Connector | Spring Terminals |
| Audio Output Connector | Spring Terminals |
| Enclosure | |
| Enclosure Geometry | Round |
| Color | White |
| Cut Out Diameter | 181 mm (7,2 in) |
| Depth | 75 mm (3,0 in) |
| Dimensions ( H x W x D ) | 205 x 205 x 75 mm 8,0 x 8,0 x 3,0 in |
| Net Weight | 0,7 kg ( 1,5 lb ) |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 250 x 230 x 370 mm 9,8 x 9,1 x 14,6 in |
| Shipping Weight | 0,9 kg ( 1,9 lb ) |
