Overview
Ideal for Small-to-Medium Environments

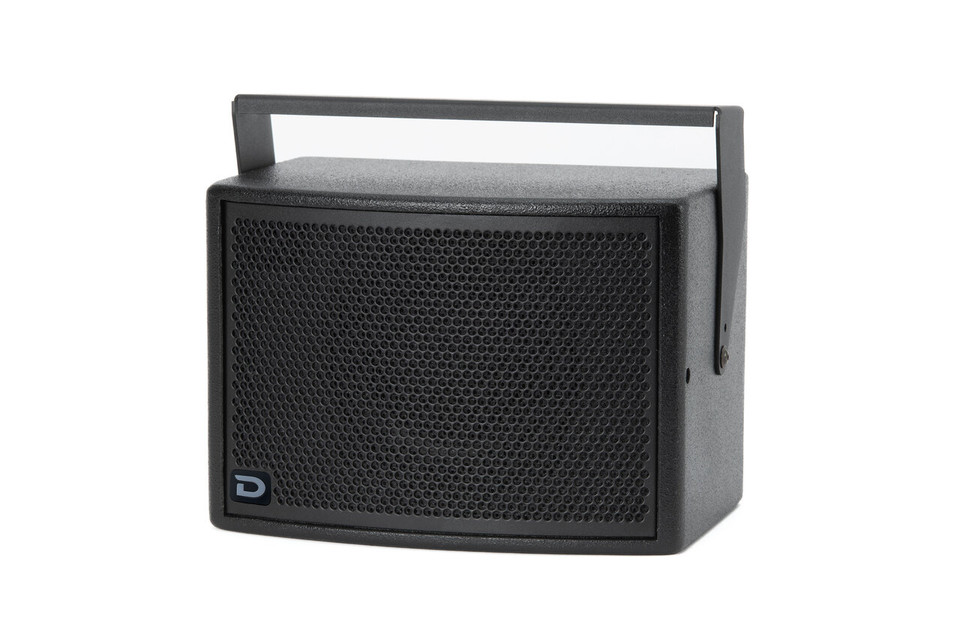

The AXS5 is a compact, linear-response loudspeaker engineered to deliver accurate and consistent output from a small-format enclosure. Utilizing a coaxial 1″ high-frequency driver paired with a coated 5″ low-to-mid transducer, the AXS5 employs a high-power crossover network optimized for stability, thermal reliability, and minimal phase distortion. This driver and crossover combination ensures dependable performance even under demanding operating conditions.
Designed for bars, restaurants, retail spaces, and other small-to-medium environments, the AXS5 provides uniform coverage and smooth tonal balance, making it well-suited for foreground music, distributed audio, and auxiliary fill applications. The system’s extended and controlled frequency response also enables effective full-range standalone operation.
Specifications
Performance
- Operating Mode: Passive single channel – 16 Ohm
- Operating Range: 60Hz – 19kHz
- Coverage Pattern: 80° Conical
- Transducers: 5″ / 1″ coaxial
- Power Handling: 120W
- Sensitivity: 89 dB SPL (1 W / 1 m)
- Output: 95 dB cont. / 110 dB max
Physical
- Connections: Dual Neutrik NL4
- Mounting / Suspension Points: M5, U-Bracket included
- Dimensions: H x W x D / 6.9″ x 9.85″ x 6.9″ / 175 mm x 250 mm x 175 mm
- Weight: 8.4 lbs / 3.8 kg
- Finish: Black enclosure with matte black grille / White enclosure with matte white grille
- Enclosure Material: 12 mm 6-ply Baltic Birch
