Overview

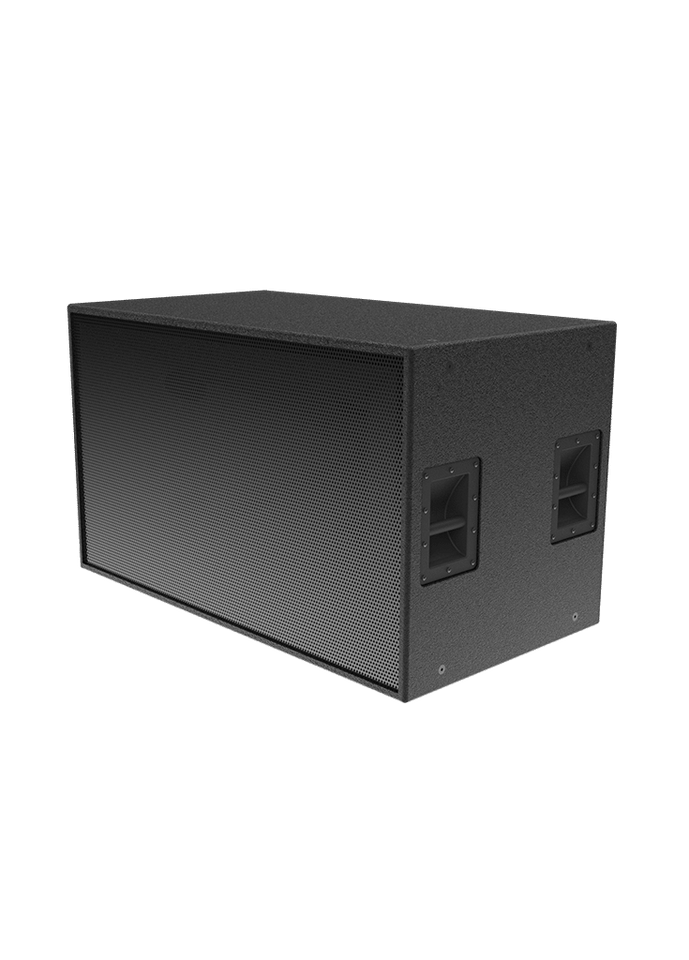

Just like the SH96, this loudspeaker offers an extraordinary design that features 11 drivers coupled to a single Synergy Horn™ that includes four 15-inch drivers, six 4-inch mid-range drivers and a 1.4-inch-high exit HF compression driver – all mounted within a 45-inch x 26-inch horn. Thoughtful driver placement within the horn, combined with our Synergy crossover network, allows for proper phase alignment between frequency bands. This permits the physically separated bands to combine and emerge from the horn in synchrony, greatly reducing off-axis distortions in frequency response and allowing for greater clarity at long distances.

Specifications

• Coverage Pattern

  • 90 horizontal
  • 60 vertical
• Operating Frequency Range

  • 45 Hz – 13.5 kHz +/- 3dB
  • 38 Hz – 15 kHz – 10dB
• Continuous Output: 133 dB SPL
• Peak Output: 139 dB SPL
• Sensitivity: 105 dB SPL (2.83 Volts into rated Z, at 1 meter) Measured in whole space
• Driver Complement

  • Low 4 x 15″
  • Mid 6 x 4″
  • High 1 x 1.4″
• Dimensions: 26.5 x 45 x 25 inches
• Weight: 220 lbs
• Rated Impedance

  • Low 8/2 ohms selectable
  • Mid/High 4 ohms
• Power Rating

  • Low
  • 2800 Watts Cont.
  • 11,000 Watts Peak
  • Mid/High
  • 800 Watts Cont.
  • 3200 Watts Peak
