Overview

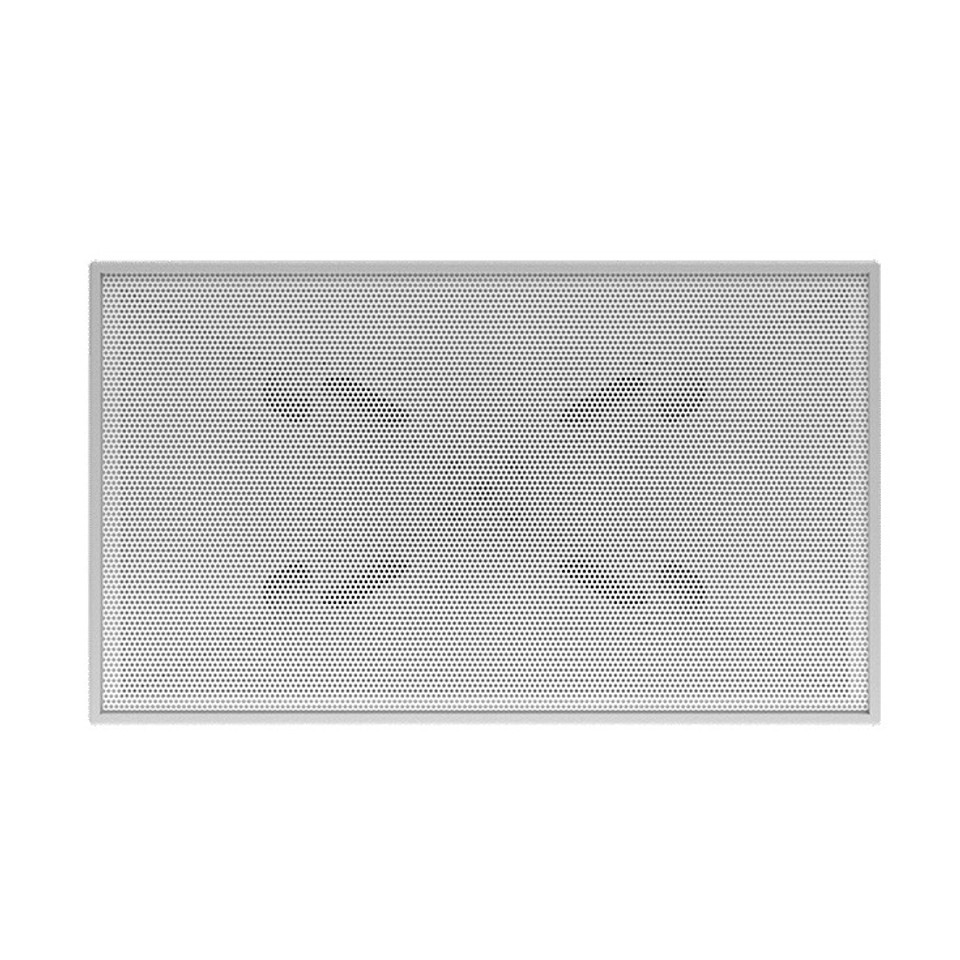

This loudspeaker offers anextraordinary design that features 11 drivers coupled to a single Synergy Hornthat includes four 15-inch drivers, six 4-inch mid-range drivers and a1.4-inch-high exit HF compression driver – all mounted within a 45-inch x26-inch horn. Thoughtful driver placement within the horn, combined with Danley’sSynergy crossover network, allows for proper phase alignment between frequencybands. This permits the physically separated bands to combine and emerge fromthe horn in synchrony, greatly reducing off-axis distortions in frequencyresponse and allowing for greater clarity at long distances.

Specifications

Coverage Pattern	90° Horizontal, 60° Vertical
Operating Frequency Range	45Hz-13.5KHz +/- 3dB, 38Hz-15KHz +/-10dB
Continuous Output	133 dB SPL
Peak Output	139 dB SPL
Sensitivity	105 dB (2.83V into rated Z, at 1 meter) measured in free space
Driver Complement	Low 4 x 15", Mid 6 x 4", High 1 x 1.4"
Dimensions	26.5 x 45 x 25 inches
Weight	220 lbs
Rated Impedance	Low: 8/2 ohms selectable, Mid/High: 4 ohms
Power Rating	Low: 2,800W continuous, 11,000W peak, Mid/High: 800W continuous, 3,200W peak
