Overview

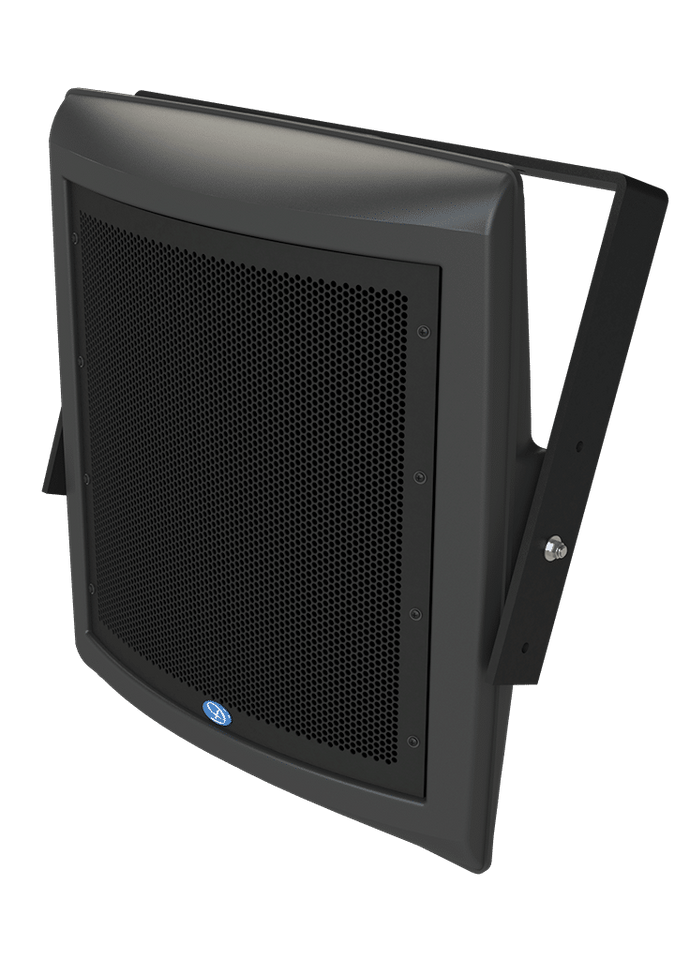

Loud and clear, yet cost efficient, the OS12CX offers fullyweatherized, high fidelity and high output audio. This ultra-compact box combinesgreat fidelity and unrivaled magnitude/phase response that is also imperviousto weather. Featuring a 12”/1” coaxial driver the loudspeaker is designed forshorter throw applications from a compact full range Synergy Horn™. Utilizing aSynergy crossover network allows for proper phase alignment between frequencybands. This permits the physically separated bands to combine and emerge as asingle source, greatly reducing off axis distortions in frequency response andallowing for greater clarity at long distances. A Sentinel ™ protection circuitoffers an added level of protection to the high frequency driver.Specifications
| Coverage Pattern | 90° nominal |
| Operating Frequency Range | 69Hz-21.7KHz +/- 3dB, |
| Continuous Output | 119 dB SPL |
| Peak Output | 125 dB SPL |
| Sensitivity | 95 dB (2.83V into rated Z, at 1 meter), measured in whole space |
| Driver Complement | 1 x 12" coaxial |
| Dimensions | 29.57 x 26.15 x 10.72 inches |
| Weight | 40 lbs |
| Rated Impedance | 8 Ohm |
| Power Rating | 300W continuous, |
