Overview

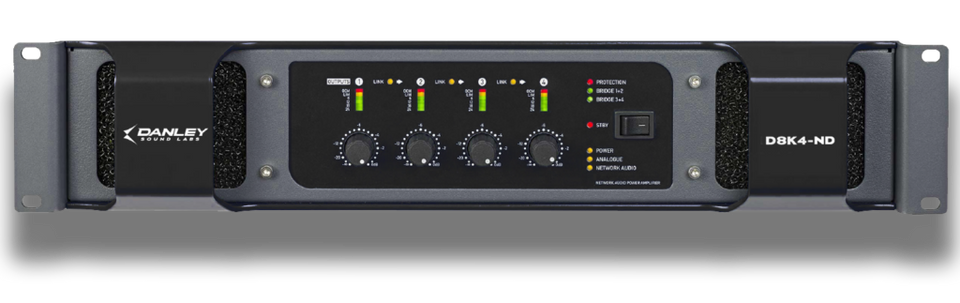

The Danley D8K4-ND 4-channel professional amplifier delivers high output power while also offering high efficiency and low heat generation. This latest addition to Danley’s amplifier offering features advanced protection circuitry that ensures the safety of the equipment and speakers including over-current and short circuit protection, thermal protection and a soft-start function to minimize the inrush current.
Specifications
- Output @ 2 Ohms: 2,000W
- Output @ 2.7 Ohms: 2,200W
- Output @ 4 Ohms: 2,000W
- Output @ 8 Ohms: 1,000W
- 4 Ohms Bridged: 4,000W
- 8 Ohms Bridged: 4,000W
- Gain / Sensitivity: 32dB / 8.8dBu
- Weight: 23 lbs – 10.3 kg
- Dimensions: 3.46″ (h) x 18.98″ (w) x 16.85″ (d) | 88 (h) x 482 (w) x 428 (d)
- Bit Depth & Sample Rate: 24 bit ADCs and DACs, 96kHz sampling and processing throughout
- AES & Networked Audio: 44.1kHz – 192 kHz
- THD%: @1 1 kHz < 0.08% | 20 Hz to 20 kHz < 0.1%
- Frequency Response: 20 Hz – 20 kHz +0/-0.5 dB
- Protection Limiters: RMS Fully Variable x 8; Look Ahead (zero overshoot) Peak Limiter x 8 Output short circuit, DC; Over-temperature; Mains in-rush control, over voltage, over current
- Power Supply: 100/120V or 220/240V tapped transformer according to customer requirements
