Overview

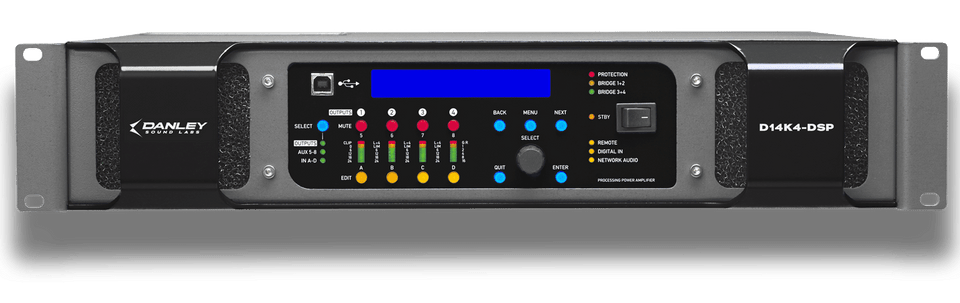

The Danley D14K4-DSP 4 channel professional amplifier features powerful processing such as FIR filtering, dynamic eq, and Dante networking (optional) alongside unique DSP architecture including 4 local + 4 aux DSP channels (also supplied to the network), meaning a single Delta DSP amplifier can control a stereo 4-way system with no external processing. With Class-D power, the D14K4-DSP delivers high output power while also offering high efficiency and low heat generation.
Specifications
- Output @ 2 Ohms: 3,500W
- Output @ 2.7 Ohms: 3,700W
- Output @ 4 Ohms: 2,700W
- Output @ 8 Ohms: 1,400W
- 4 Ohms Bridged: 7,000W
- 8 Ohms Bridged: 5,400W
- Gain / Sensitivity: 32dB / 10.7dBu
- Weight: 24 lbs – 10.9 kg
- Dimensions: 3.46″ (h) x 18.98″ (w) x 16.85″ (d) | 88 (h) x 482 (w) x 428 (d)
- Bit Depth & Sample Rate: 24 bit ADCs and DACs, 96kHz sampling and processing throughout
- AES & Networked Audio: 44.1kHz – 192 kHz
- THD%: @1 1 kHz < 0.08% | 20 Hz to 20 kHz < 0.1%
- Frequency Response: 20 Hz – 20 kHz +0/-0.5 dB
- Protection Limiters: RMS Fully Variable x 8; Look Ahead (zero overshoot) Peak Limiter x 8 Output short circuit, DC;
- Over-temperature; Mains in-rush control, over voltage, over current
- Power Supply: 100/120V or 220/240V tapped transformer according to customer requirements
