Overview

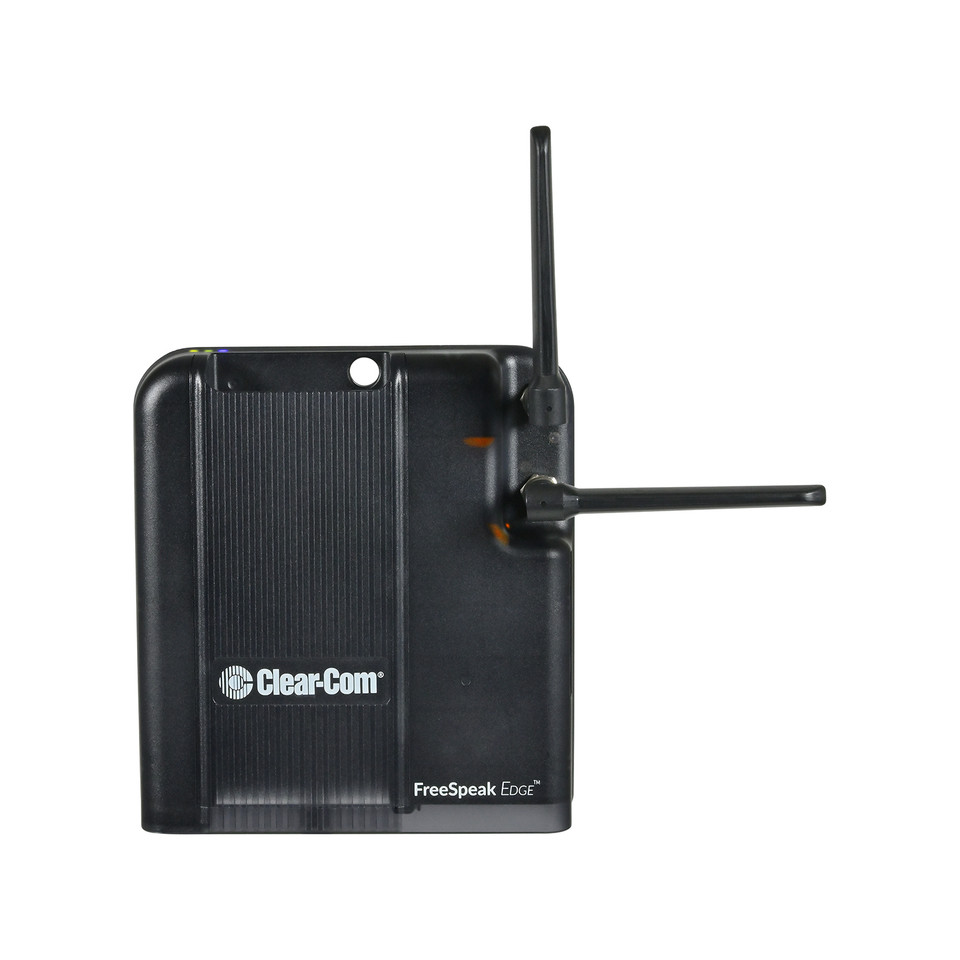

The FSE-TCVR-50-IP is an active IP transceiver antenna for the FreeSpeak Edge wireless system. The transceiver delivers duplex communications from the Eclipse® HX matrix system via the E -IPA-HX interface card to the FreeSpeak Edge beltpacks. Each transceiver can support up to ten FSE-BP50 beltpacks. When supported with an E-IPA-HX card with 64 licensed ports, up to 64 FreeSpeak Edge beltpacks and 64 transceivers can be deployed with one Eclipse HX matrix system. The FreeSpeak Edge Digital Wireless RF Configuration Guide provides specifications, best practices and guidance for using the 5 GHz band and RF channels.

Transceiver

• LED status indicators on top and bottom of transceiver
• External omnidirectional antennas for the transceiver
• Dual redundant radios per beltpack and transceiver
• Separate radios for RF and radar scanning
• Wall-mount plate
• Microphone stand mounts (metric and imperial threads)
• Tripod spigot mount

Connectivity

• Functions with FreeSpeak Edge base, Arcadia Central Station, and E-IPA-HX cards
• Supports 10 FreeSpeak Edge beltpacks per transceiver
• Supports up to 64 transceivers and beltpacks per 64 port E-IPA-HX card and 200 beltpacks per Eclipse HX system
• Robust radio link works in high multipath or reflective environments
• Wi-Fi coexistence
• Standalone mode for site survey and demo
• AES256 shared key encryption
• Dual network connections
• etherCON RJ45 network connection
• High speed SFP fiber cage
• Power-over-Ethernet (PoE) up to 330ft (100m)
• Daisy-chaining up to three locally powered transceivers

Mechanical

• IP53 rating for wet and dusty conditions

Specifications

• Frequency Spectrum: 5170 -5875MHz (20MHz channels set by country)

• Output Power: Adjustable from 1 – 24dBm (Maximum output power is determined by selected channel and country)

• Modulation: OFDM

• Antennas: 3dB Omni

• Antenna Connector: RP-TNC


Power Supply

• Input Voltage: 100 to 240V AC (50 - 60Hz)

• Output Voltage: 12V @ 5A (60W)

• MTBF (min.): 300,000 Hours (Calculated Hours at 25ºC by Telcordia SR-332)


Environmental

• IP53 water and dust resistance

• Operating: 32° to 113°F (0° to 45°C)

• Storage: 86° to 158°F (30° to 70°C)

• Humidity: 20-90% Non-Condensing


Dimensions

• With Transceiver Mount Bracket: 7.60 x 8.25 x 4.12in (WxHxD) (193.04 x 209.6 x 104.65mm)

• Without Transceiver Mount Bracket: 7.60 x 8.25 x 3.37in (WxHxD) (193.04 x 209.6 x 85.6mm)

• Transceiver Mount Bracket: 4.26 x 4.51 x 0.75in (WxHxD) (108.27 x 114.62 x 19.05mm)

• Distance Between Vertical Screw Holes: 3.5in (88.9mm)

• Distance Between Horizontal Screw Holes: 3in (76.2mm)


Weight

• With Transceiver Mount Bracket: 2.527lbs (1.15kg)

• Without Transceiver Mount Bracket: 2.252lbs (1.02kg)
