EQUIP Transceiver: 5GHz

SKU: CLRCM-EQP-TCVR
MSRP: $910.00

Overview

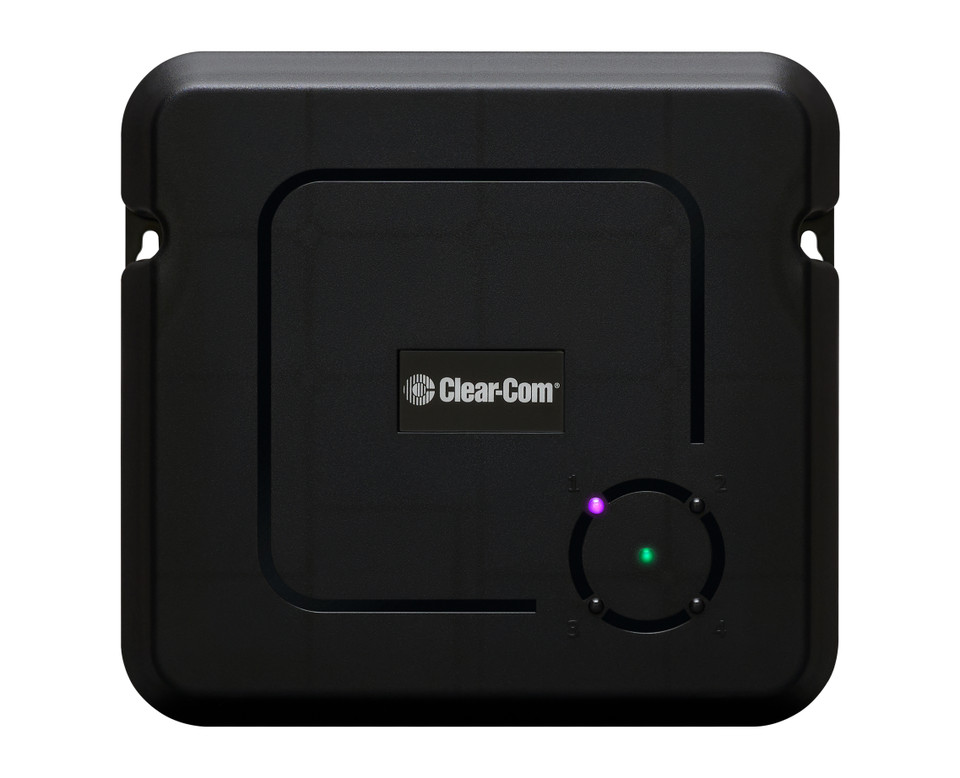

Digital remote transceiver for EQUIP wireless intercom systems.

Features

  • Power and audio to transceivers
  • Remote monitoring from the EQUIP base station
  • 5 GHz license free radio band
  • Single CAT5/6 cable to EQUIP Base
  • Centrally powered from the EQUIP Base Station
  • Site Survey Mode for transceiver placement
  • 40 Wireless headsets per system
  • Status LEDs

Specifications

Connections

  • Transport Protocol: Data and Audio with power up to 500 ft from the EQUIP Base
  • Front Panel: LED type: 5 x RGB, one for power and 4 for connection status
  • Rear Panel: RJ45 port

Frequency Range

  • Main Radio: 5.180 – 5.8525GHz

Power Supply

  • Voltage: 48V DC (powered from EP-BASE)
  • Current: 60 mA pk-pk @ 48 V
  • Power: 2.88W
  • Note: Frequency used in each country may vary based on local regulatory requirements.

Environmental

  • IP53 water and dust resistance
  • Operating: 32º-125ºF (0º-50ºC)
  • Storage: 32º-150ºF (0º-70ºC)
  • Humidity: Between 20% and 90%, Non-Condensing

Dimensions

  • 7 x 7.2 x 1.56 in (HxWxD)
  • (170.31 x 181.8 x 39.6mm)

Weight

  • 14oz (396g)
