Overview
TWC-703 combines two single channels from a Clear-Com partyline system to a TW line, allowing dual channel TW segment to be added to any Clear-Com partyline system. TW connectivity provides the system with the simplicity of standard 3-pin XLR cabling when using TW compatible user stations, such as the RS-703 beltpack.
Note: Access the Encore Power Supply Calculator to estimate power requirements for analog partyline systems.
Features
- Converts 2 Clear-Com Partyline channels to 1 dual Channel TW Partyline
- Translates Audio and Call signals
- Auto Termination Management
- Auto Power Protection
- Used with optional PSU*
- Independently Powers TW Output
- Standalone Dual Channel TW PSU
Specifications

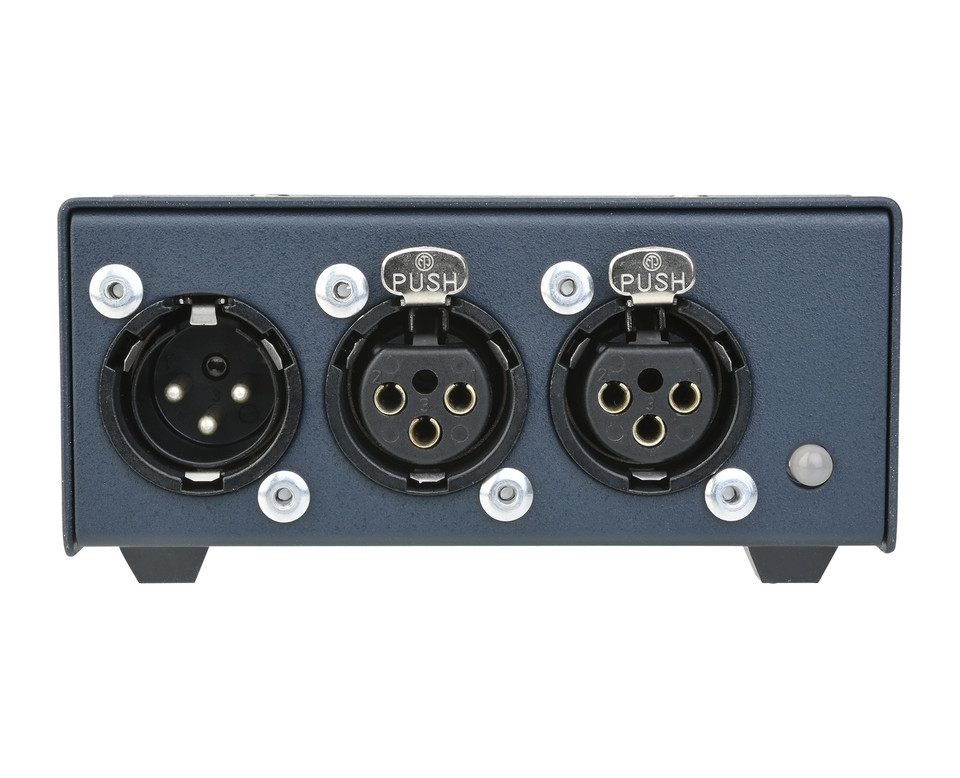

Front Panel Connectors
- (2) Intercom in XLR3F
- TW out XLR3M
- Power / Overload Indicator
Rear Panel Controls & Indicators
- DC Power Connector 2.1mm Co-axial
Power Requirements
- Input Voltage: 20-30V DC
- Input Current (Idle): 65mA
- Input Current (Max): 550mA
- TW Output Current (Max): 550mA
Environmental
- 32° to 122° F (0° to 50°C)
Dimensions
- 4 x 2 x 5in (WxHxD)
- (101 x 51 x 127mm)
Weight
- 1lbs (0.503kg)
