Overview

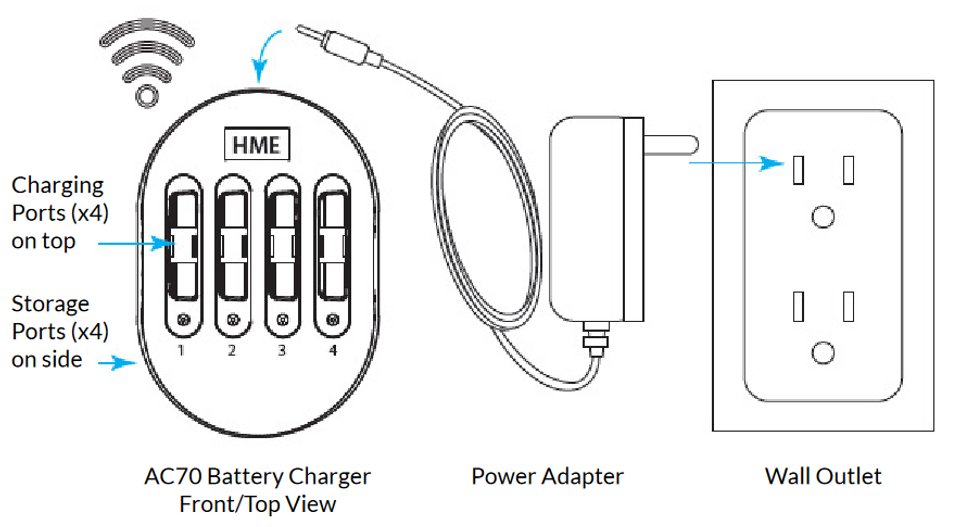

The AC70 Smart Battery Charger can charge up to four BAT70 lithium-ion batteries simultaenously. LEDs at the charging ports indicate battery status. Charge time is approximately two hours. The AC70 can be placed on a desktop or mounted on a wall.

Features

• 4-port quick charger
• Charges 4 batteries simulatenously
• 4 battery storage slots
• LED status indicator lights
• Charge time is 2 hours
• Charges BAT70 lithium-ion batteries
• Desktop or wall mount options
• Wireless Connection to Base Station provides battery charging status

Specifications

Power Supply

• Input Voltage: 100-240V AC nomimal
• Output Voltage: 5V; 4A
• MTBF: 300,000 hours calculated
• Charge Output: ~ 3W per port

Battery Charger

• Input Voltage: 5V; 4A
• Charge Output: ~3W per port

Wireless

• Wireless PAN, 2.4 GHz Wireless Technology

Front/Top Panel

• Four charging ports for BAT70
• LED type: 4xRGB, for port/battery charging status

Side Panel

• Four storage ports for BAT70 (Storage ports do not charge)

Environmental

• Operating: 32° to 104°F (0° to 40°C)
• Storage: -40° to 80°F (-40° to 176°C)
• Humidity: 0-95% Non-Condensing

Dimensions

• AC70: 3.1 x 4.75 x 1.75in (WxHxD) (78.74 x 120.65 x 44.45mm)
• BAT70: 1.6 x 1.8 x 0.24in (WxHxD) (40.64 x 45.72 x 6.1mm)

Weight

• AC70: 0.9lbs (0.4kg)
• BAT70: 0.11lbs (0.05kg)
