Overview

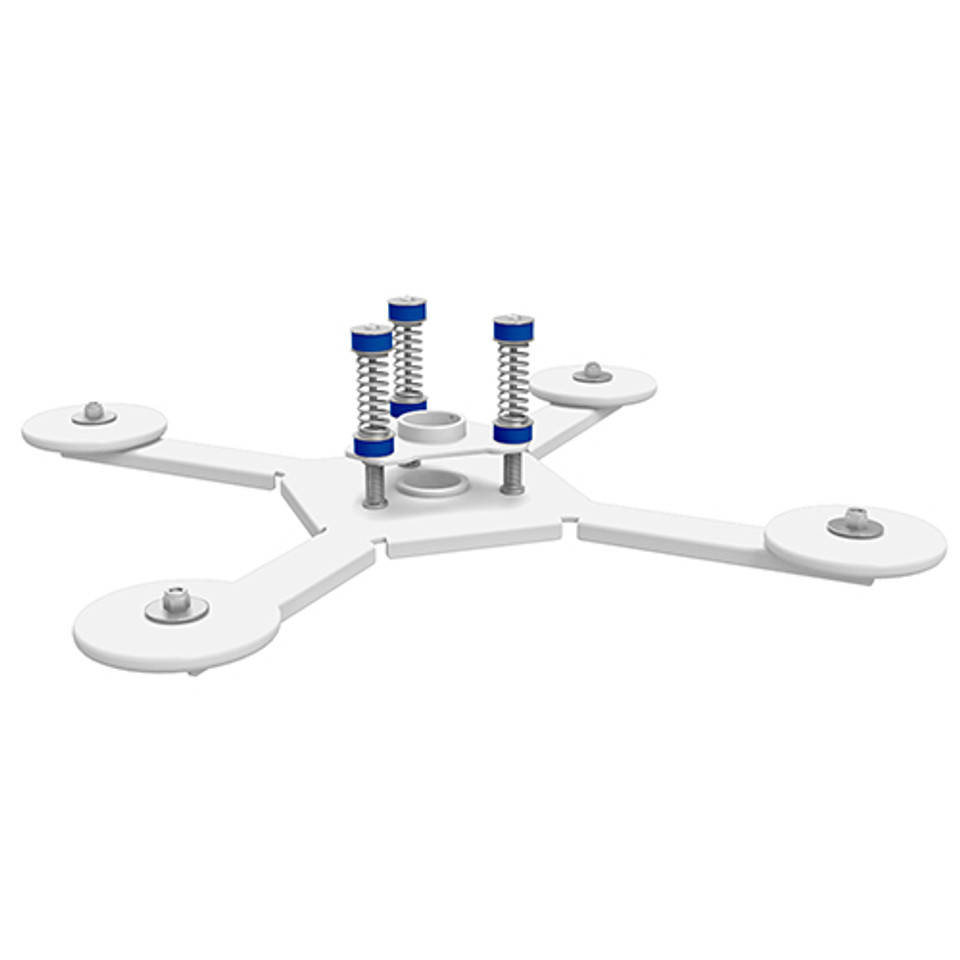

The CMA Large Venue Vibration Isolating Coupler reduces image movement caused by common building vibrations like HVAC, foot traffic, road traffic and doors shutting. The patented design works as a projector mount vibration isolator by connecting two Chief CMS columns (1.5” NPT) and limiting vibrations that are transmitted to the lower column. The CMA348 is for systems between 35-100 lbs (45.4 kg)
- Systems include all weight below the vibration isolator, including column, projector mount and projector
- Average weights of common mounts include: RPAU (4 lbs or 1.8 kg), RPMAU (5 lbs or 2.3 kg), and VCMU (33 lbs or 15 kg).
- Average weight of CMS columns under 12” in length are 1 lb (0.5 kg) or less
Specification
Dimensions & Measurements
| Depth | 23 in (58.4 cm) |
| Height | 6 in (15.2 cm) |
| Overall Dimensions | 6" x 23" x 23” (152 x 584 x 584 mm) |
| Shipping Weight | 1 lbs (0.5 kg) |
| Weight Capacity | 35-100 lbs (15.9 – 45.4 kg) |
| Width | 23 in (58.4 cm) |
Characteristics & Features
| Accessory Type | |
| Application | Ceiling |
| Color | White |
| Special Features |
