Overview

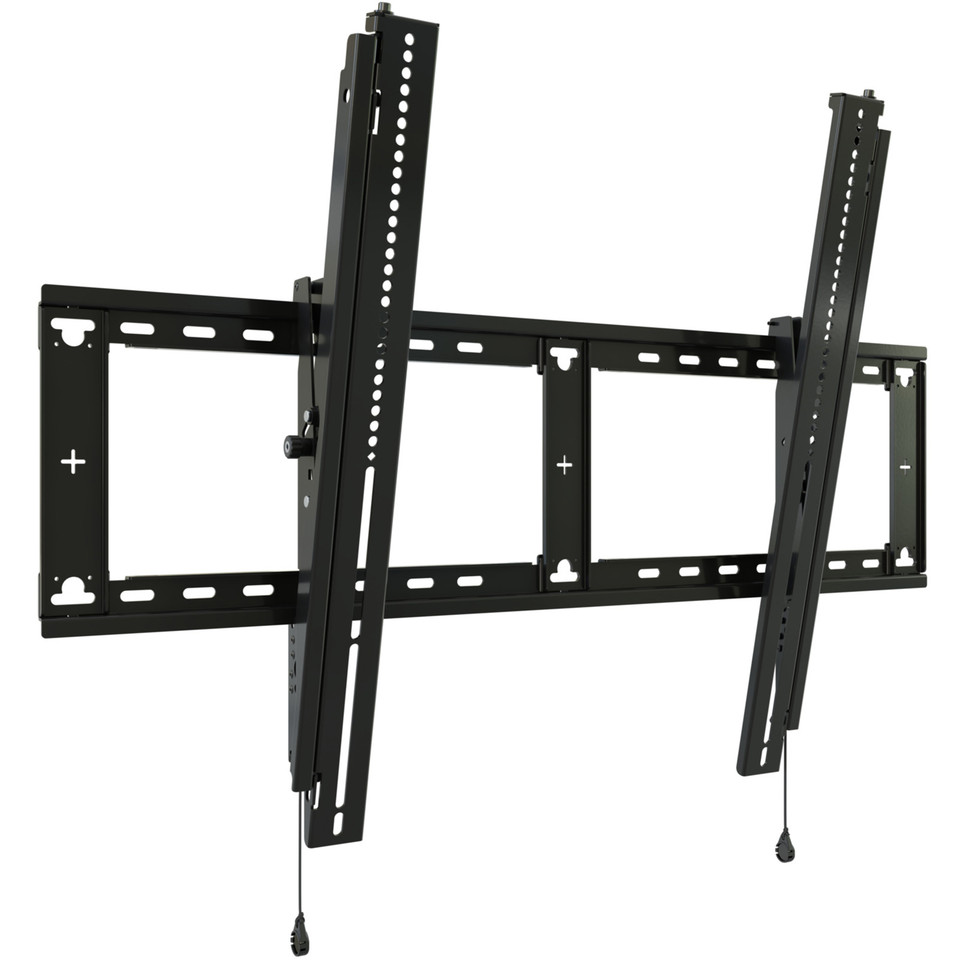

The Fit series RXT3 is an extra-large tilt display wall mount for 49” to 98” typical display sizes and supports mounting patterns up to 915 x 650 mm. This next-generation design features 0.75” (19 mm) post-installation leveling, robust wall plate design supporting up to 250 lbs (113.4 kg), 2.5” (64 mm) low-profile depth, up to 12° tilt, and UL and TUV safety standards approved.
-
Easy to reach 0.75” (19 mm) post-installation leveling screw and 10” (254 mm) ball end hex-key included
-
Display can be tilted up to 12° to set the optimal viewing angle
-
Open wall plate allows for flexible positioning around power and data wall boxes
-
Supports display mounting patterns up to 915 x 650 mm
-
Re-designed rigid wall plate supports up to 250 lbs (113.4 kg) and has additional mounting slots for improved installation experience
-
Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
-
Easy access magnetic quick-store release pullcords
-
Kickstand for easy access to power and signal connections
-
Theft deterrent security options (not included)
-
UL and TUV safety standards approved
Specification
| Depth | 2.5 in (6.4 cm) |
| Height | 27.05 in (68.7 cm) |
| Manual Height Adjustment | 0.75 in (19.1 mm) |
| Minimum Depth | 2.5 in (6.4 cm) |
| Overall Dimensions | 19.18" x 22" x 2" (487 x 559 x51mm) |
| Shipping Weight | 20.39 lbs (9.3 kg) |
| Typical Screen Size | 49"- 98" (1244mm - 2489mm) |
| Wall Stud Compatibility In | Triple 16" (406 mm) |
| Weight Capacity | 250 lbs (113.4 kg) |
| Width | 38 in (96.5 cm) |
| Adjustability | Tilt |
| Application | Wall |
| Color | Black |
| Orientation | Landscape |
| Solution Type | Universal |
| Tilt | -12° |
| VESA Mounting Pattern | up to 915 x 650 mm |
| Certifications |
