Overview

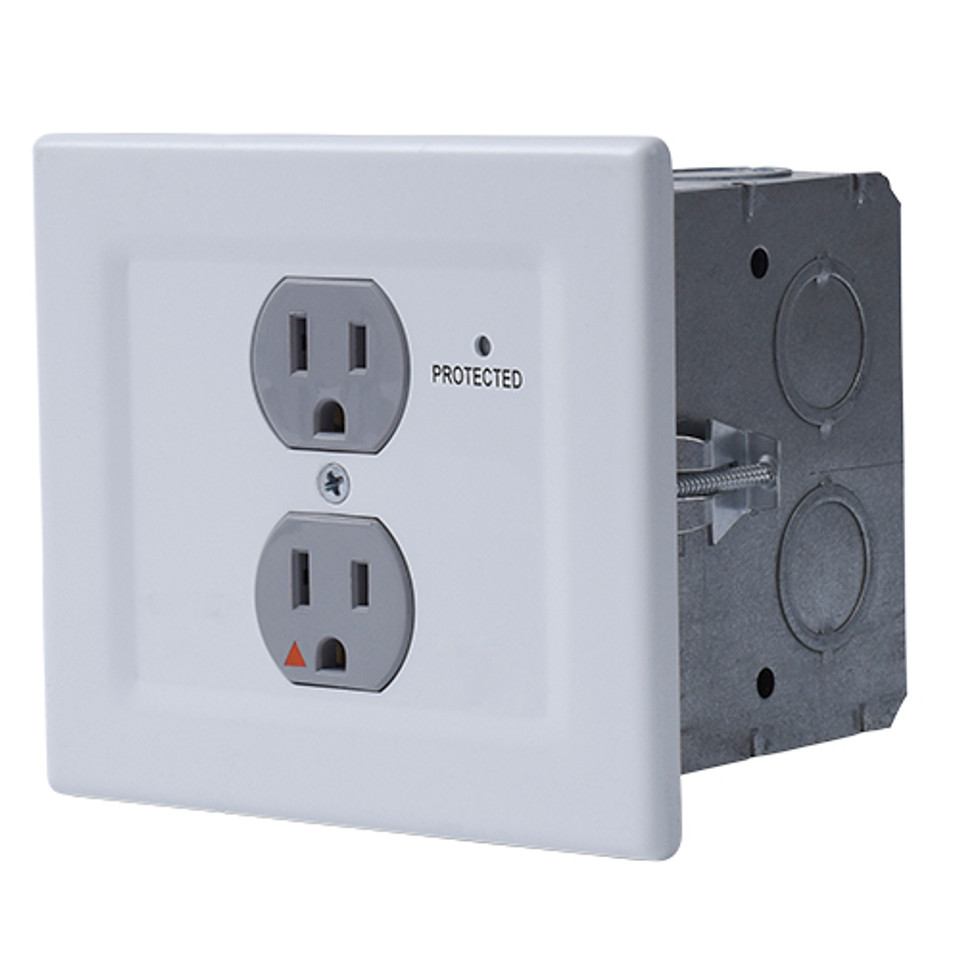

A high-performance, dual gang housing, isolated ground, dual receptacle outlet featuring non-sacrificial multi-stage filtration and surge protection system. Protects equipment from disruptive high frequency noise and damage caused by power disturbances.
- Non-volatile spike protection with LED power indicator
- Non-sacrificial multi-stage technology
- Non-current limiting design passes full power on a regular circuit; redundant protection circuits
- Improves the reliability and functionality of connected equipment by safeguarding equipment from high energy transients, lightning strikes and electronic noise events that can cause gear degradation and downtime
- Line filter reduces common and differential mode noise by up to 40 dB
- Rated for 125V~, 60Hz, 15 A
- 1875 watt maximum
- Ferrite toroid based EMI Filter
- Withstand rating of 240 VAC continuous without damage or loss of protection
Specification
Dimensions & Measurements
| Depth | 4.04 |
| Height | 4.5 |
| Overall Dimensions | 4.5" x 5.25" x 4.04” (114 x 133 x 103 mm) |
| Width | 5.25 |
Characteristics & Features
| Accessory Type | Power |
| Adjustments | For additional dimensional specifications see technical drawing |
| Application | Wall |
| Notes | Housing Dimensions (HxWxD): 3.95 x 4.33 x 3.79” (100 x 110 x 96 mm) |
| Power Requirements | |
| Solution Type | Dual-gang housing |
| Special Features | Surge and Filtering |
