Overview

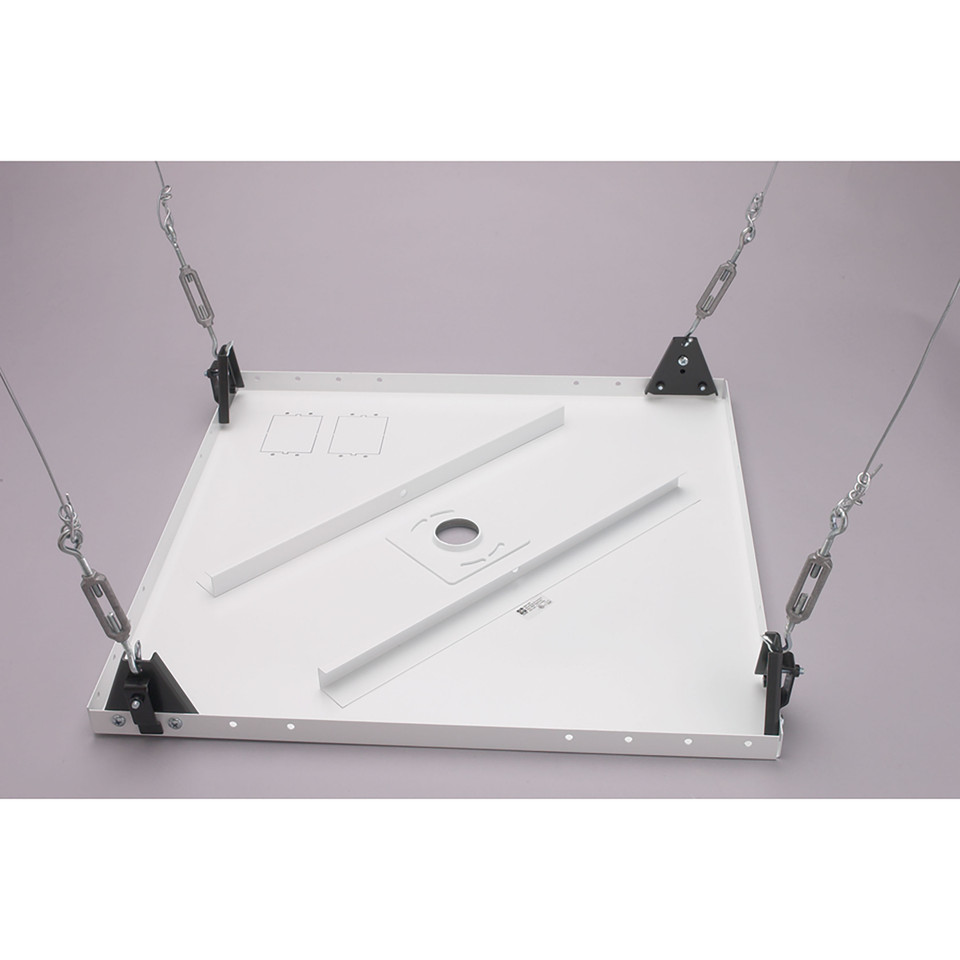

The easiest to install, most economic mounting kit available for suspended ceilings.
- CMA443 is a bundle including CMA440 (Above Tile Suspended Ceiling Kit) and CMS003 (3" Fixed Pipe)
- Installs above ceiling tile
- Comes with 10 ft (304.8 cm) safety cable, 20 ft (609.6 cm) strand wire, two outlet knockouts, four turnbuckles, wood eye bolts, concrete anchors and chrome ring
- Perfect for mounting most front projectors under 250 lbs (113.3 kg) using center hole or under 125 lbs (56.6 kg) using the side or corner holes
- Minimal assembly required
- Easy clamping to ceiling tracks
- Compatible with 600 x 600 mm or 600 x 1200 mm ceiling tile in Europe, Canada and Mexico
Specification
Dimensions & Measurements
| Ceiling Tile Size | 2' x 2' (0.61 x 0.61m) |
| Depth | 23.8 |
| Height | 1.1 |
| Overall Dimensions | 1.1" x 23.8" x 23.8" (29 x 603 x 603 mm) |
| Shipping Weight | 21 lbs (9.5 kg) |
| Weight Capacity | 250 |
| Width | 23.8 |
Characteristics & Features
| Accessory Type | Suspended Ceiling |
| Application | Ceiling |
| Ceiling Plate Type | Flat |
| Color | White |
| Column Type | None |
| Includes Power Outlet | No |
| Installation Type | Replacement |
| Special Features | Surge and Filtering |
