Overview

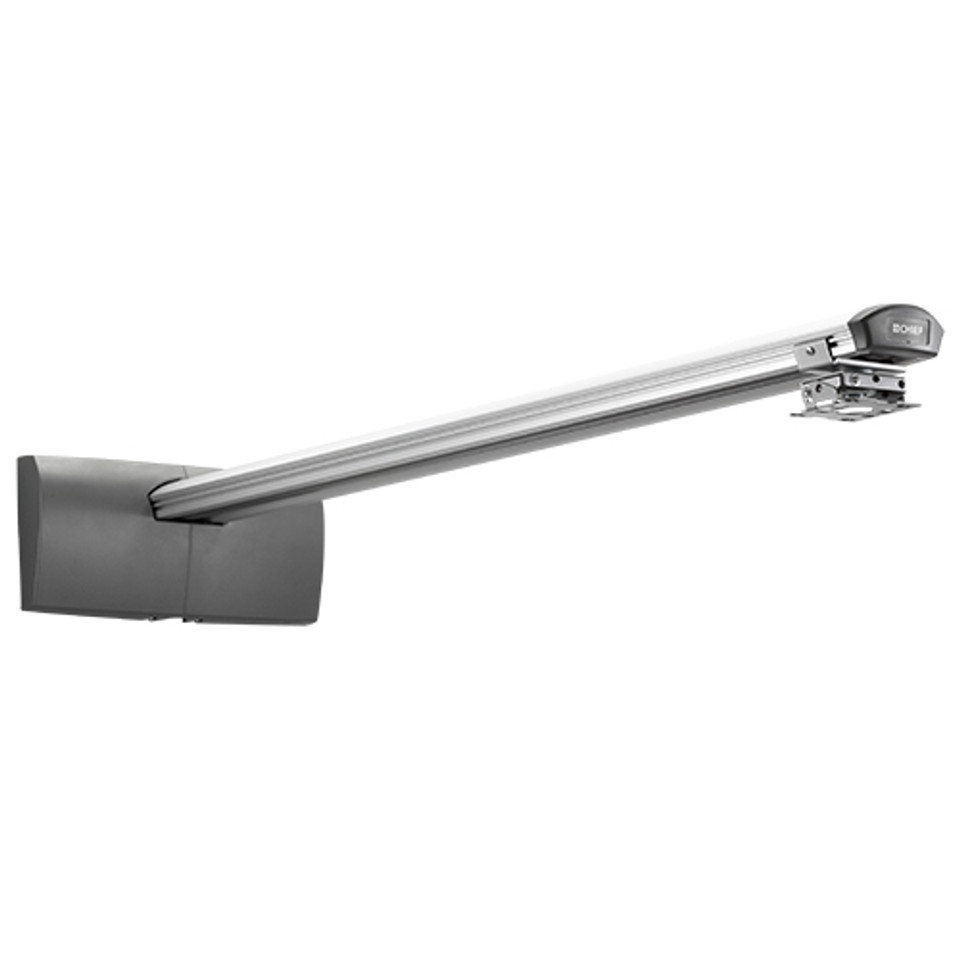

The WP23US provides ideal placement and alignment for mounting to wood studs, steel studs and concrete.
• Includes RPA mini universal projector mount (RSAUS).
• Also supports wall-mounted long-throw projectors.
- Precision adjustment
- Projector mount slides along arm for infinite projector placement
- Integrated micro leveling
- Lateral shift of 1.75"
- Integrated cable management
- Aesthetic covers and inlay style cable management system conceal and protect cables for a clean finish.
- Multiple installation options
- Designed for mounting to concrete, block wall, brick, dual wood or dual steel studs. Includes hardware for mounting to wood stud and concrete wall
- Complete Solution
Includes short throw arm and RPA mini universal projector mount
- 1.5" NPS collar provides compatibility with RPA & Elite Series projector mounts and other accessories
- Ability to personalize your install with Chief's interchangeable logo card
- Also sold in 24” & 40” length options
Specification
Dimensions & Measurements
| Depth | 8.62 in (21.9 cm) |
| Extension | 2.38" - 55.12" (6.05cm - 140.00cm) |
| Height | 56.36 in (143.2 cm) |
| Lateral Shift | 1.75 in (4.4 cm) |
| Overall Dimensions | 56.36" x 19.05" x 8.62" (143 x 48 x 22 cm) |
| Shipping Weight | 28.4 lbs (12.9 kg) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Width | 19.05 in (48.4 cm) |
Characteristics & Features
| Adjustability | |
| Adjustments | |
| Application | Wall |
| Color | Silver |
| Interface Type | Projector |
| Projector Size | Large |
| Protective Glass | Manual |
