Chief PAC525FWP2

Chief PAC525FWP2

Chief PAC525FWP2

Chief PAC525FWP2

IN-WALL SMALL WHT - W/ SURGEX 1 OUTLET

SKU: CHF-PAC525FWP2
MSRP: $383.00
MAP: $306.40

Overview

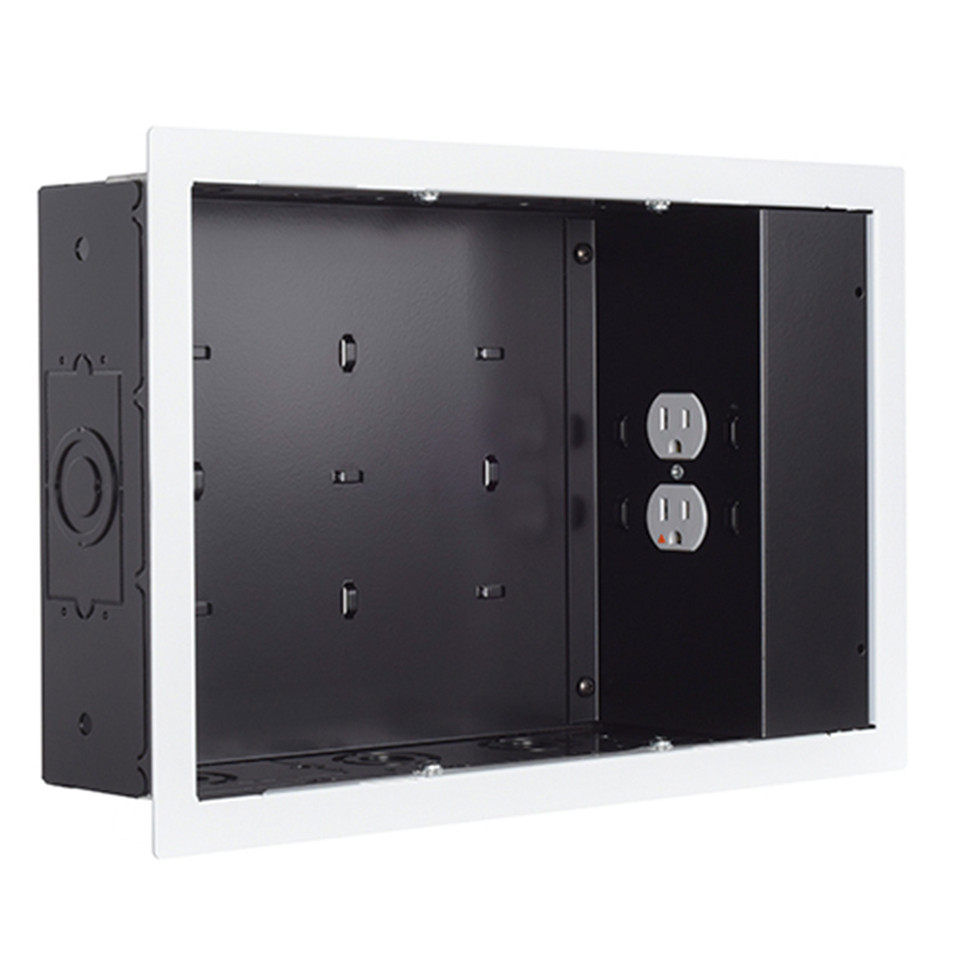

The PAC525FWP2 simplifies flat panel installation by providing an organized, recessed space for routing excess cables. The addition of the flange adds an aesthetic trimmed appearance and drywall mounting capability.

Includes a high-performance, dual gang housing, isolated ground, dual receptacle outlet featuring non-sacrificial multi-stage filtration and surge protection. This protects equipment from disruptive high frequency noise and damage caused by power disturbances.

Compatible with the PST, PRO, PLP, MSR, MTR, MWH, MWR, PWR, PNR, PDR, Thinstallâ„¢, and Fusion® wall mounts.

Diagram
See this storage box as part of the ultimate motion-based, auto-tracking conference room. See the diagram
Video
Chief has added new capabilities to its line of storage solutions. Watch the 3-minute video on this storage box. Watch the spotlight video

Specification

Dimensions & Measurements
Depth3.88
Height10.26
Overall Dimensions10.26" x 15.4" x 3.88" (261 x 391 x 98 mm)
Weight Capacity10
Width15.4
Characteristics & Features
        Accessory Type
      • In-Wall
      • Power
      • ApplicationIn-Wall
        ColorBlack
        Cover ColorNone
        Flange ColorWhite
        NotesOutput: 15A, 1875 W continuous
        Power Requirements
      • N-G; 800V L-GMaximum Continuous Operating Voltage (MCOV): 240VNominal Discharge Current (In): 3kAShort Circuit Current Rating (SCCR): 5kAAmbient Temperature Max: 40 degrees C
      • Power Consumption: >0.5 wattType 3 Surge Protective Device (SPD)Voltage Protection Rating (VPR): 600V L-N
      • Receptacle TypeTwo Surge and Filter
        Special Features
      • Flanges
      • Surge and Filtering
