Overview

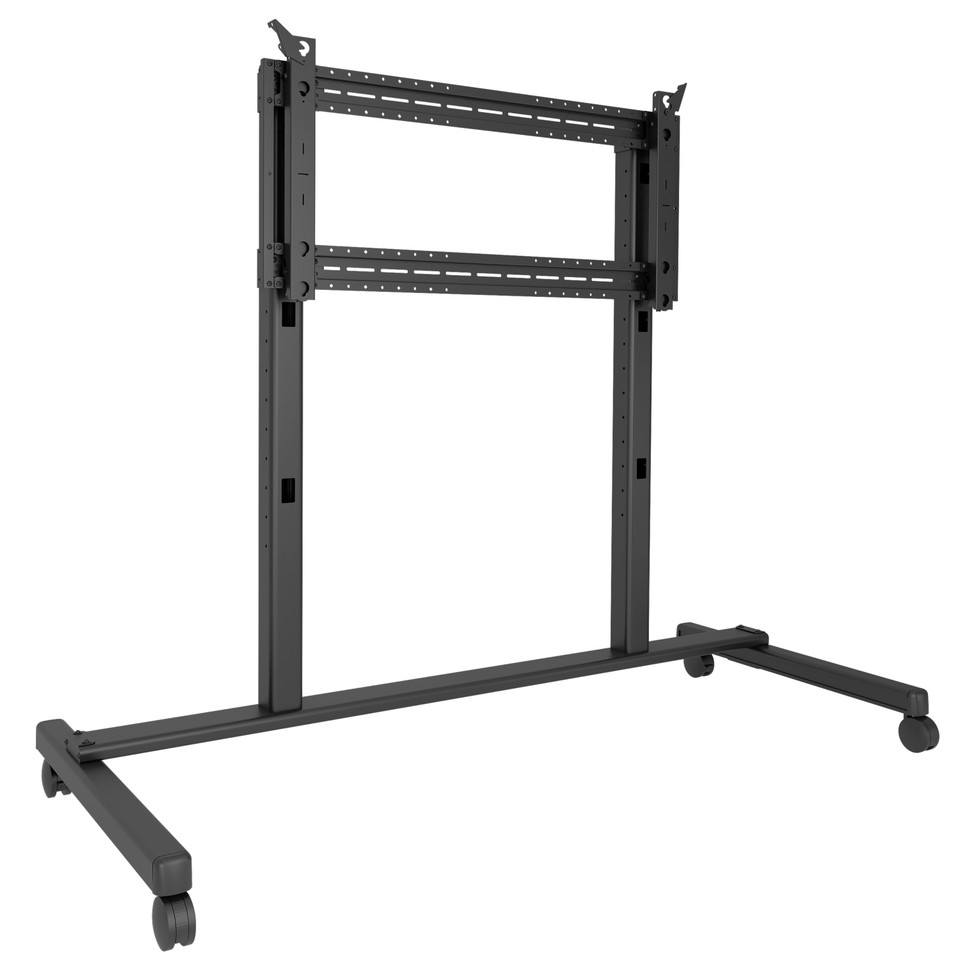

The XVM1U Fusion® Extra Large Cart offers a high weight capacity and quick installation features. Plumb adjustment helps to vertically align the display. This robust mount secures heavy displays and interactive technology to protect user investments.
- Universal bracket design to match multiple displays
- Smooth rolling casters for effortless positioning (1 locking caster per leg)
- Integrated cable management for a clean installation
Specification
Dimensions & Measurements
| Depth | 41.62 in (105.7 cm) |
| Height | 76.39 in (194 cm) |
| Overall Dimensions | 76.39 x 91.04 x 41.62" (194 x 231.2 x 105.7 cm) |
| Plumb Adjustment | +1.6° |
| Weight Capacity | 310 lbs (140.6 kg) |
| Width | 91.04 in (231.2 cm) |
Characteristics & Features
| Application | Floor-Cart |
| Color | Black |
| Number of Displays | 1 |
| Orientation | Landscape |
| Solution Type | Universal |
| VESA Mounting Pattern | 1200 x 600 or 400 mm, 1100 x 600 or 400 mm, 1000 x 600 or 400 mm, 900 x 600 or 400 mm, 800 x 600 or 400 mm, 700 x 600 or 400 mm, 600 x 600 or 400 mm, 500 x 600 or 400 mm, 400 x 600 or 400 mm |
