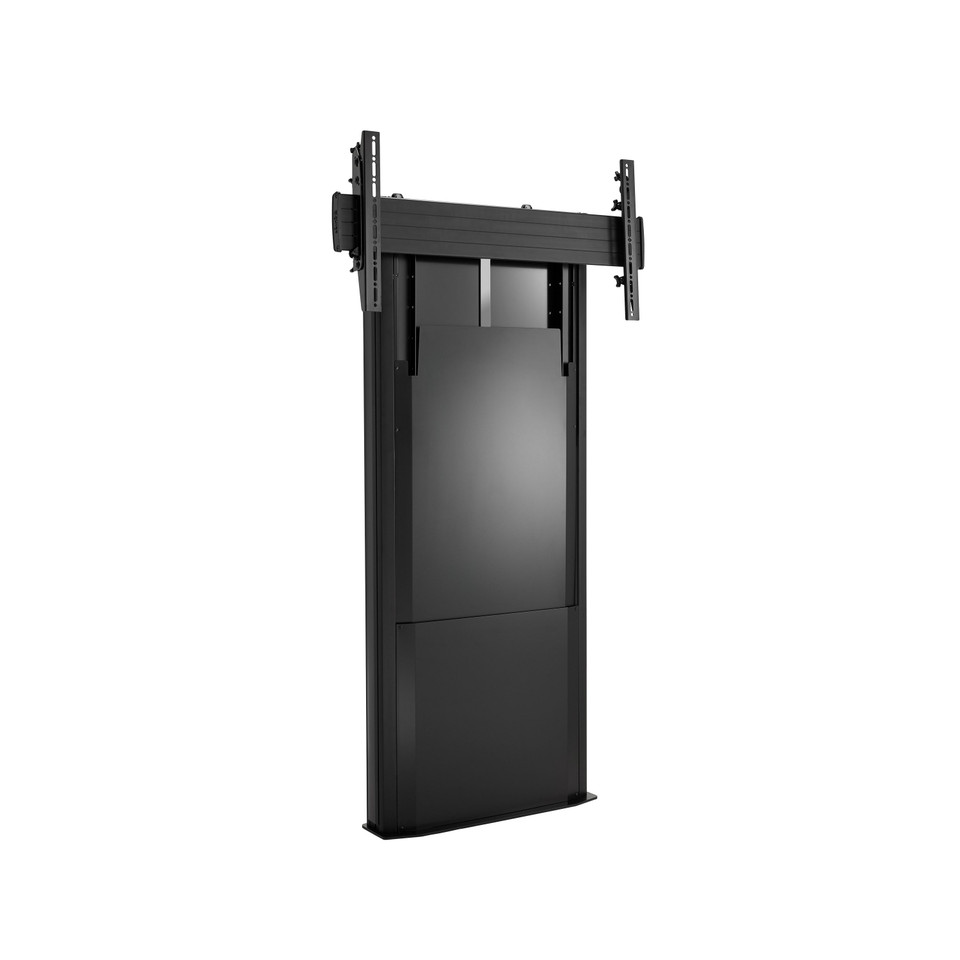

Chief MFD1U

Chief MFD1U

Chief MFD1U

Chief MFD1U

FUSION DYNA HGHT ADJ FLOOR TO WALL-MED

SKU: CHF-MFD1U
MSRP: $3,597.00
MAP: $2,877.60

Overview

Ideal for interactive applications, Fusion® mounts with dynamic height adjust capability create better accessibility to technology in the boardroom and the classroom. The height adjustable box provides ultra-smooth and fast vertical travel with almost no effort.

Easy to install. Easy to adjust.

This solution is especially helpful for applications where the wall structure can't carry the weight.

Now Available

  • Height adjustable box allows up to 15.75” (400 mm) of vertical adjustment instantly by manually moving the display up and down by hand
  • Starting height can be set at 3” (76 mm) intervals over a span of 15” (381 mm)
  • A full line of accessories can be installed with the mount and the entire unit can be adjusted together
  • Integrated security flag

Specification

Dimensions & Measurements
Depth6.3 in (16 cm)
Dynamic Height Adjustment15.75” (400 mm)
Height64.4 in (163.6 cm)
Overall Dimensions64.4 x 36.8 x 6.3" (1636 x 935 x 160 mm)
Weight Capacity67 - 130 lbs (30.4 - 59 kg)
Width36.8 in (93.5 cm)
Characteristics & Features
      Adjustability
    • Height Adjustable
    • Micro-Adjustable
    • ApplicationFloor-Cart
      ColorBlack
      Number of Displays1
      Orientation
    • Landscape
    • Portrait
    • Solution TypeUniversal
      Special FeaturesHeight Assist
      VESA Mounting Pattern200 x 200 - 800 x 400 mm
