Overview

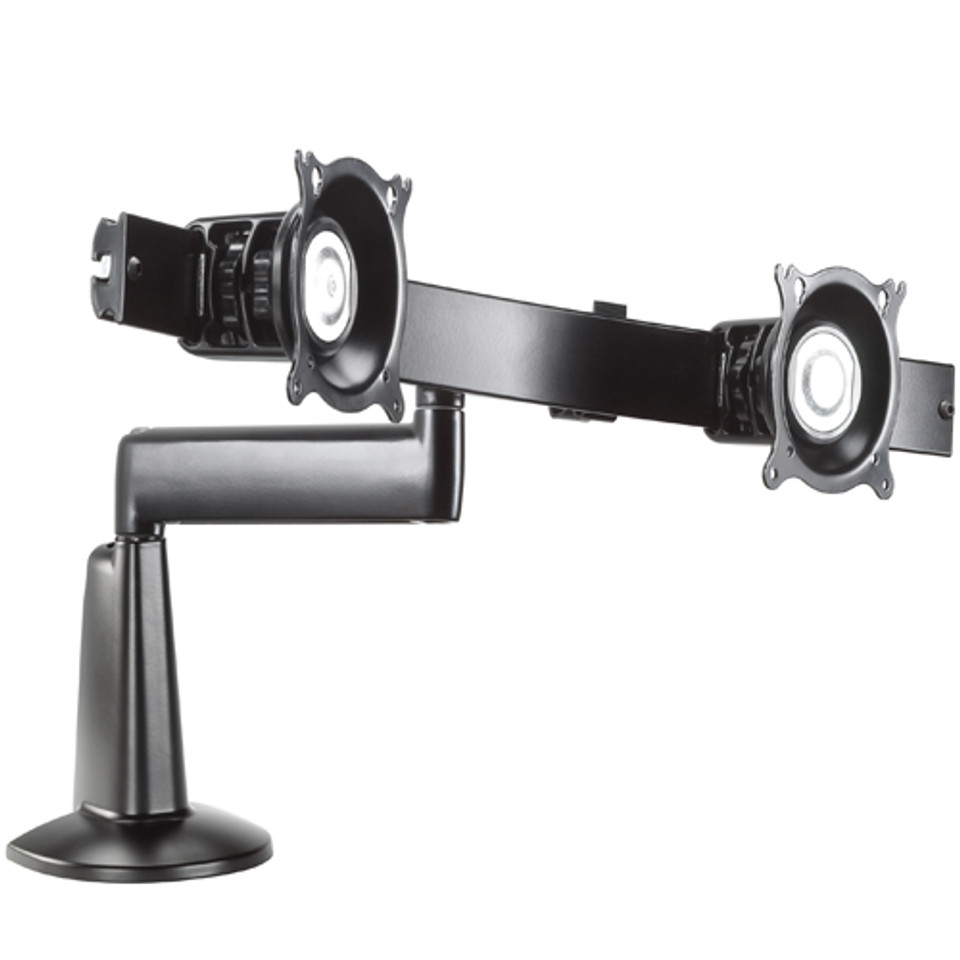

The KCD220 offers the ability to ergonomically mount dual displays, and articulate them in and out for optimal ergonomic positioning.
Also check out the Kontourâ„¢ K2C22H products, which provide additional manual height adjustment on the column, longer reach, and other improved features and performance:
K2C22HB
K2C22HS
- Centris Technology provides smooth, fingertip tilt in all directions
- Screen angle stays set until you decide to re-adjust
- Clamp option allows mount to be installed from the top of the mounting surface
- Multiple mounting options: edge clamp, grommet clamp, grommet thru-bolt
- Clean look with minimal hardware visible from underside of work surface
- Independently adjustable tension at pivot points for customized control; tension can be optimized for touchscreen use
- Quick, easy cable management with infinitely adjustable cable management clips
- VESA® 75 x 75 mm and 100 x 100 mm compliant (interface brackets available for non-VESA® compliant displays)
Note: Mounting surface maximum thickness: 3.2" (81 mm), grommet hole size: 0.38"- 3" (10-76 mm)
Specification
Dimensions & Measurements
| Minimum Depth | 6.4 in (16.3 cm) |
| Shipping Weight | 21 lbs (9.5 kg) |
| Weight Capacity | 17 |
Characteristics & Features
| Adjustability | |
| Array Configuration | 2x1 |
| Color | Black |
| Desktop Thickness Range | 0.5" - 3.5" (13mm - 89mm) |
| Grommet Hole Size Range | 0.38" - 3" (10mm - 76mm) |
| Notes | Weight capacity is per monitor |
| Number of Displays | 2 |
| Orientation | |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| Special Features | Multi-Display |
| VESA Mounting Pattern | 75 x 75mm, 100 x 100mm |
