Overview

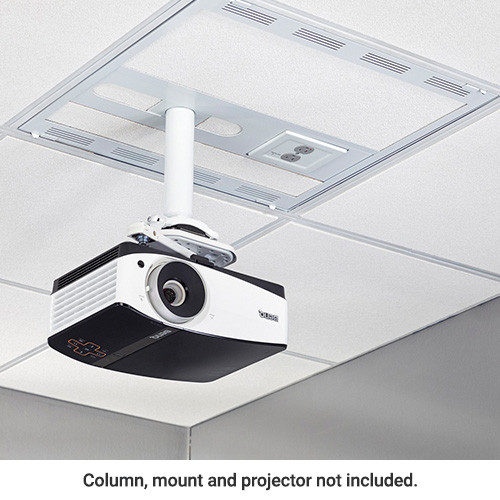

The CMS492CP2 conceals AV equipment above a 2' X 2' ceiling tile and supports a 1.5"" NPT column drop for mounting projectors within the same tile grid providing a clean professional look for classrooms and conference rooms.
Includes a high-performance, dual gang housing, isolated ground, dual receptacle outlet featuring non-sacrificial multi-stage filtration and surge protection. This protects equipment from disruptive high frequency noise and damage caused by power disturbances.
Column not included, must be purchased separately.
- Optimal pipe flexibility within the tile helps with less reliance on image correction improving image quality
- Drop carriage door improves accessibility and serviceability providing full access to equipment
- Detachable power housing can be pre-installed with electricians on site and assembled to the storage box at a later time
- Inside the box or facing the room
- Up to 2 single gang or 1 dual gang outlet
- 4 nested knockouts for 1-1/4"", 1"", & ½"" diameter conduit
- Built in ventilation
- AV tray supports a variety of AV components
- Ships with 1 shelf, 2nd shelf sold separately see CMSUNV2
- 1 RU rack rail brackets sold separately, see CMS1RU
- Overall weight capacity 100 lbs (45 kg)
- 50 lbs (22 kg) for projector ceiling plate
- 25 lbs (11 kg) per shelf location
- Ships with speed connect installation hardware
- Lightweight construction, one man installation
- UL evaluated for use in Air-Handling Spaces as defined by Article 300.22, Sub-clause (C) of the NEC
- TAA Compliant
Surge and Filter Module
- Non-volatile spike protection with LED power indicator
- Non-sacrificial multi-stage technology
- Non-current limiting design passes full power on a regular circuit; redundant protection circuits
- Improves the reliability and functionality of connected equipment by safeguarding equipment from high energy transients, lightning strikes and electronic noise events that can cause gear degradation and downtime
- Line filter reduces common and differential mode noise by up to 40 dB
- Rated for 125V~, 60Hz, 15 A
- 1875 watt maximum
- Ferrite toroid based EMI Filter
- Withstand rating of 240 VAC continuous without damage or loss of protection
Specification
Dimensions & Measurements
| Ceiling Tile Size | 2' x 2' (0.61 x 0.61m) |
| Depth | 23.67 in (60.1 cm) |
| Height | 8 in (20.3 cm) |
| Max Equipment Size | 7.61" x 19.25" x 20" (193 x 489 x 508 mm) |
| Overall Dimensions | 8" x 24.97" x 23.67" (203 x 634 x 601 mm) |
| Shipping Weight | 43.8 lbs (19.9 kg) |
| Weight Capacity | 100 lbs (45.4 kg) |
| Width | 24.97 in (63.4 cm) |
Characteristics & Features
| Accessory Type | |
| Accommodate Column Drop | Yes |
| Application | Ceiling |
| Color | White |
| Includes Power Outlet | Yes |
| Notes | Output: 15A, 1875 W continuous |
| Power Requirements | |
| Receptacle Type | Two Surge and Filter |
| Special Features | Surge and Filtering |
