Overview

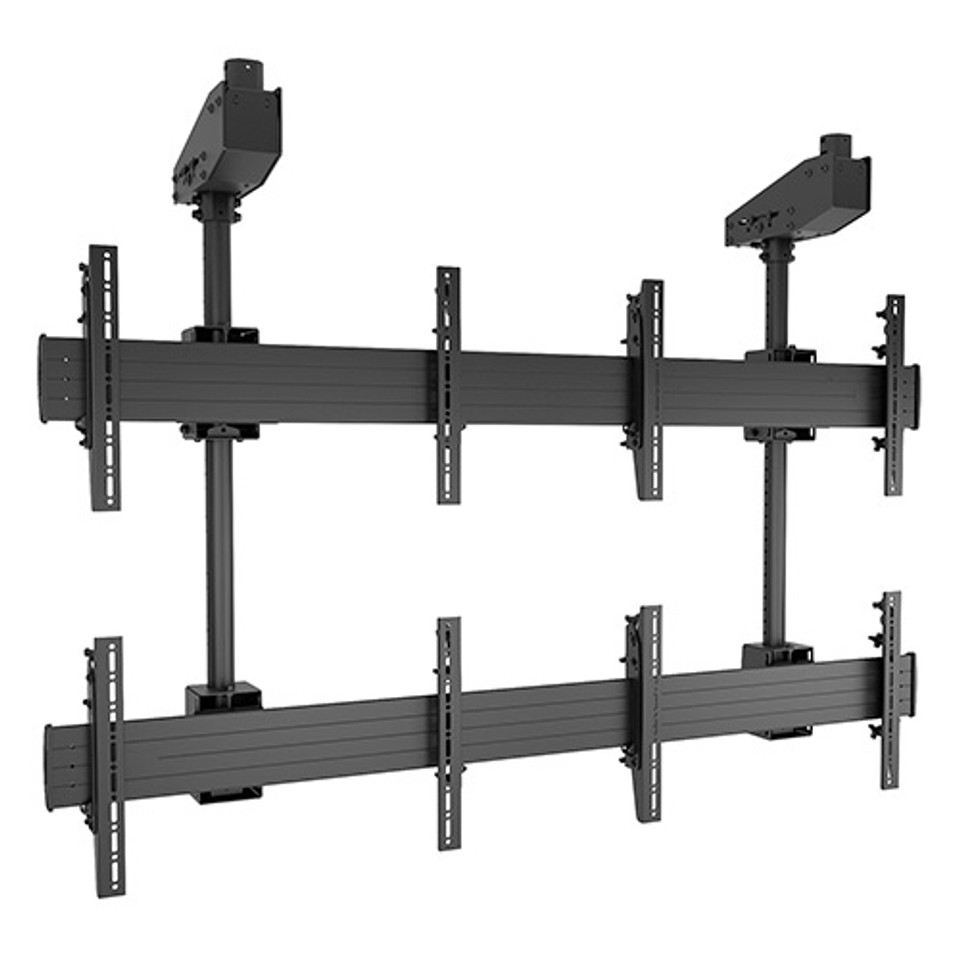

Chief's Fusion® ceiling mounted solutions make it possible to construct video walls in prominent locations where walls aren't available. Great for digital signage installations.
- Screen array configuration: screens wide x screens high.
- Confirm screen compatibility with MountFinder™.
Provide aesthetic covering to the rear side of the displays, components and mount using the Chief Fusion® Universal Back Covers.
- PRECISE SCREEN ALIGNMENT
- Easily align displays with independent knobs for height and plumb adjustments, no tools required.
- CONTROLZONE™ LEVELING
- Micro-height and leveling adjustment at all column intersection points.
- INFINITE SCREEN POSITIONING
- Infinite vertical and lateral adjustments provide tight display rows and columns.
- HEAVY-DUTY CONSTRUCTION
- Solid construction supports displays up to 55" and 125 lbs. (56.7 kg) per screen.
- CONFIGURABLE
- Add configurations side by side to create any video wall arrangements up to 3 screens tall.
- CEILING PLATE and EXTENSION COLUMN are required and must be ordered separately
- Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems.
- See ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility.
- See CPA ceiling plates and CPA columns for pin conection compatibility.
Specification
Dimensions & Measurements
| Manual Height Adjustment | 1" (25 mm) increments at structural intersections |
| Plumb Adjustment | Micro-adjustment up to 0.75" (19 mm) |
| Shipping Weight | 152 lbs (69 kg) |
| Typical Screen Size | 42"-50" (1067mm - 1270mm) |
| Weight Capacity | 125 lbs (56.7 kg) |
Characteristics & Features
| Adjustability | |
| Adjustments | Micro-Adjustments of 2" at structural intersection points |
| Application | Ceiling |
| Array Configuration | 2x2 |
| Color | Black |
| Notes | Weight capacity is per display |
| Number of Displays | 4 |
| Orientation | Landscape |
| Solution Type | Universal |
| Special Features | Multi-Display |
