Overview

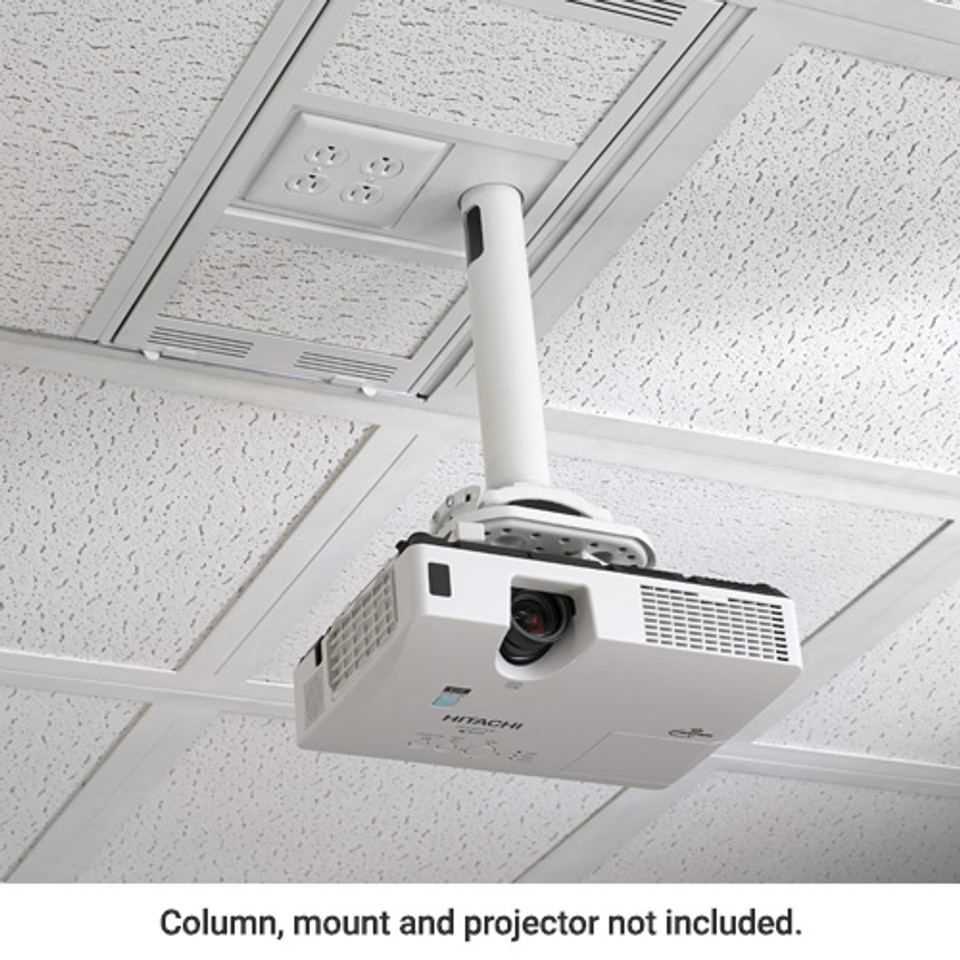

The CMS491C conceals AV equipment above a 2' X 2' ceiling tile and supports a 1.5"" NPT column drop for mounting projectors within the same tile grid providing a clean professional look for classrooms and conference rooms.
- Optimal pipe flexibility within the tile helps with less reliance on image correction improving image quality
- Drop carriage door improves accessibility and serviceability providing full access to equipment
- Detachable power housing can be pre-installed with electricians on site and assembled to the storage box at a later time
- Inside the box or facing the room
- Up to 2 single gang or 1 dual gang outlet
- 4 nested knockouts for 1-1/4"", 1"", & ½"" diameter conduit
- Built in ventilation
- AV tray supports a variety of AV components
- Ships with 1 shelf, 2nd shelf sold separately see CMSUNV1
- Overall weight capacity 100 lbs (45 kg)
- 50 lbs (22 kg) for projector ceiling plate
- 25 lbs (11 kg) per shelf location
- Ships with speed connect installation hardware
- Lightweight construction, one man installation
- UL evaluated for use in Air-Handling Spaces as defined by Article 300.22, Sub-clause (C) of the NEC
- TAA Compliant
Specification
Dimensions & Measurements
| Depth | 23.67 in (60.1 cm) |
| Height | 8 in (20.3 cm) |
| Max Equipment Size | 7.61" x 19.25" x 12" (193 x 489 x 305 mm) |
| Overall Dimensions | 8" x 12.97" x 23.67" (203 x 329 x 601 mm) |
| Shipping Weight | 31.9 lbs (14.5 kg) |
| Weight Capacity | 100 lbs (45.4 kg) |
| Width | 12.97 in (32.9 cm) |
Characteristics & Features
| Accessory Type | |
| Accommodate Column Drop | Yes |
| Application | Ceiling |
| Color | White |
| Includes Power Outlet | No |
| Receptacle Type | None |
| Special Features | Surge and Filtering |
