Overview

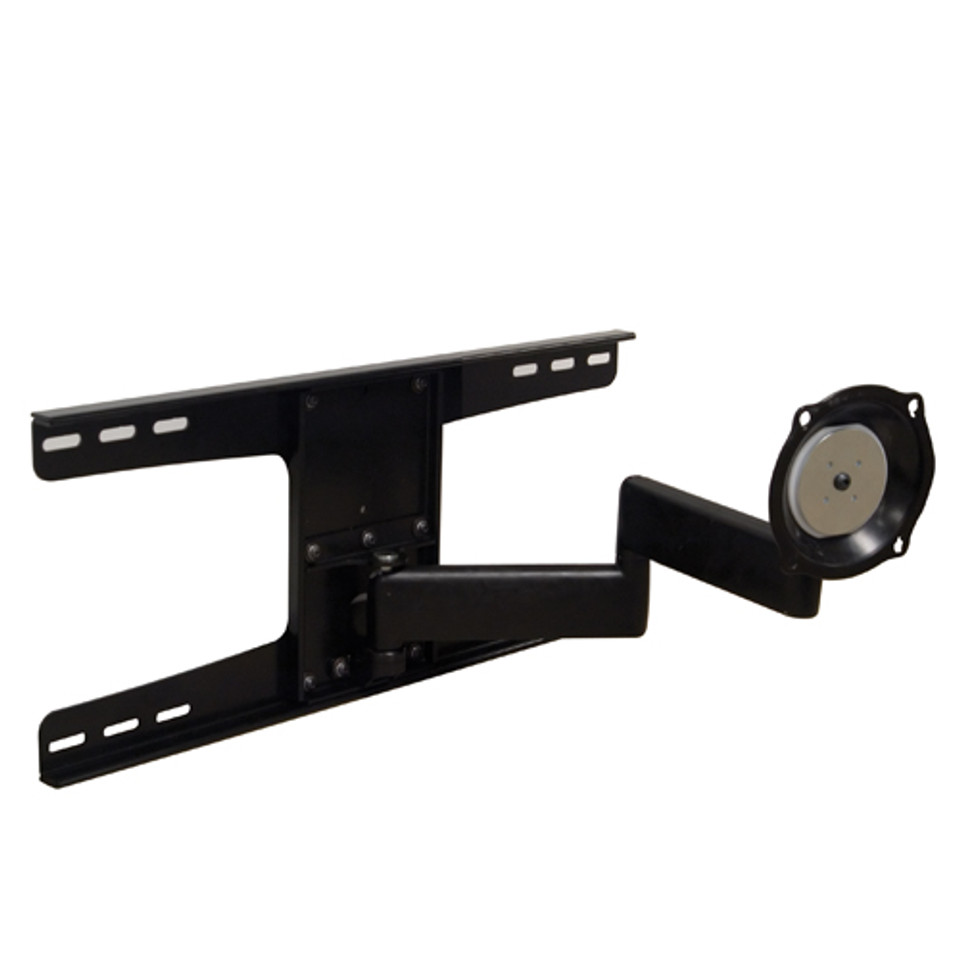

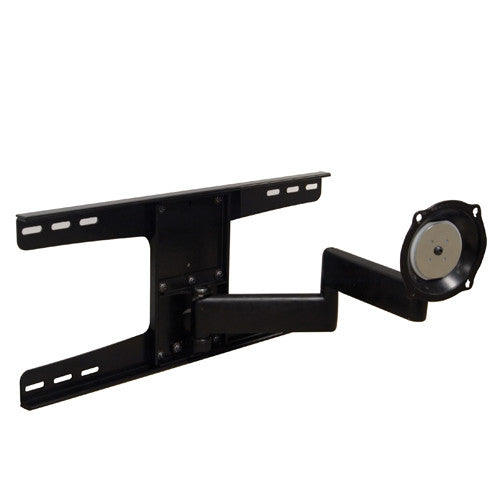

Easily installs a Chief Dual Swing Arm Wall Mount to 16", 20" or 24" on-center steel studs.
- Mounts a dual swing arm to 16", 20", or 24" on-center steel studs
- Centris Technology provides smooth, fingertip tilt in any direction
- Smooth extension over 20" (517 mm) to achieve the ideal viewing angle
- Folds in close to the wall for a low-profile appearance
- Quick, easy cable management
- All mounting hardware included
- VESA® 100 x 100 mm, 200 x 100 mm and 200 x 200 mm compatible (interface brackets available for non-VESA compliant displays)
Specification
Dimensions & Measurements
| Depth | 3.4 |
| Height | 13 |
| Overall Dimensions | 13.0" x 26.0" x 3.4" (331 x 660 x 87mm) |
| Shipping Weight | 24 lbs (10.9 kg) |
| Wall Stud Compatibility In | Metal Studs, 16-24" (406mm - 610mm) |
| Weight Capacity | 75 |
| Width | 26 |
Characteristics & Features
| Adjustability | |
| Application | Wall |
| Color | Black |
| Interface Included | No |
| Notes | Depth and Extension do not include interface bracket (may add 0" - 0.5" of depth) |
| Number of Displays | 1 |
| Orientation | Landscape |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| Special Features | Metal Stud |
| Tilt | +15° / -15° |
| VESA Mounting Pattern | 100 x 100mm, 200 x 100mm, 200 x 200mm |
