Overview

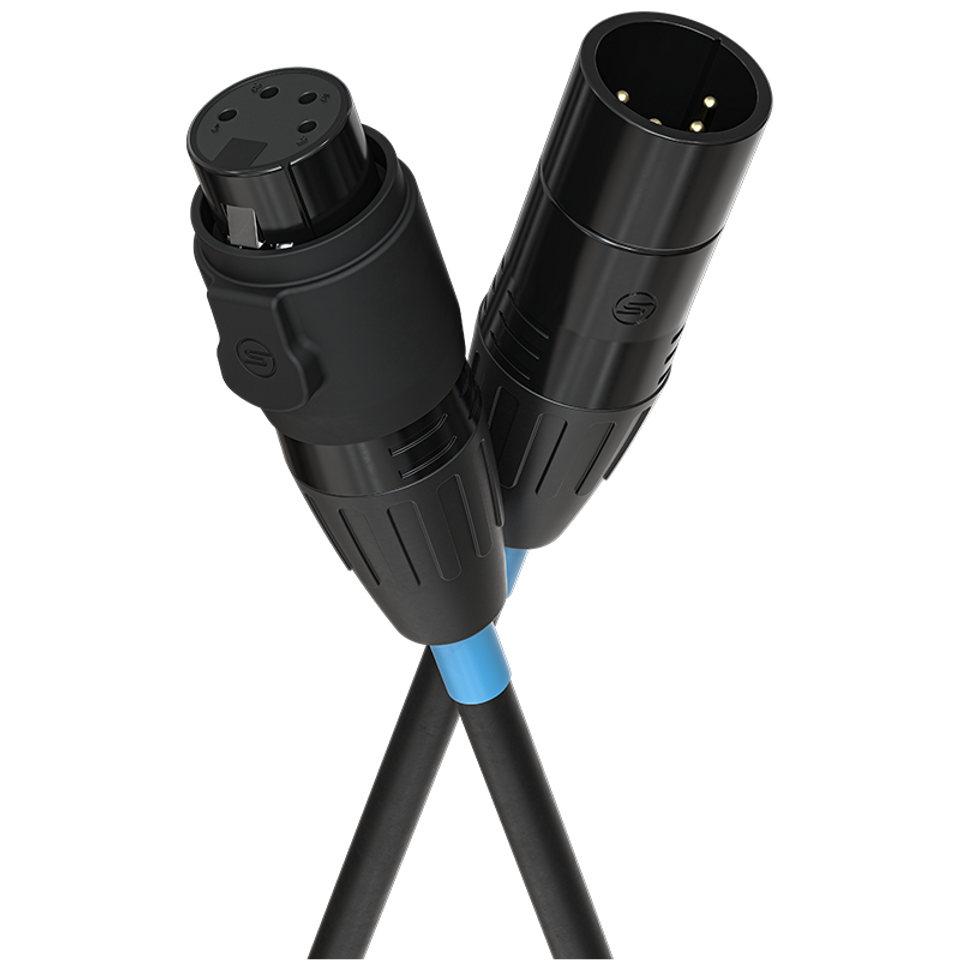

IP65-rated Riglink combined data and power cable designed for reliable DMX lighting signal transmission and safe connections with Seetronic® production-grade connectors.

At a Glance

• Outer jacket made of highly elastic PVC, providing a soft, durable, and flexible cable body.
• Ideal for both installations and touring.
• IP65 rated for outdoor use.
• Designed for use with EPIX, Strike Array 1, and other 4 pin powered products.

Riglink Cables

• Color-coded connectors eliminate cable length guesswork
• Certified components meet worldwide safety standards
• Built rugged for live performance and life on the road
• Reliable transmission and robust connection systems
• Seetronic® professional production grade connectors
• Cable lengths available in both meters and feet

Specifications

Construction / Physical

• Conductor Specification: 2 x 0.75mm2 (18AWG) & 2 x 2.5mm2 (13AWG)
• Conductor Structure: OFC 24/0. 2BC & OFC 50/0.25BC
• Insulation Material: PVC
• Insulation OD: 2.4mm & 3.5mm
• Outer Jacket Material: PVC (Black)
• Outer Diameter: 9.5 ± 0.2mm
• Temperature Rating: -20ºC – 70ºC
• IP65

Connections

• Seetronic SCWM4-BG
• Seetronic SCWF4-B

Electrical

• Withstand Voltage: 1.5kV
• Conductor Resistance: 25.98 Ω/km & 7.98 Ω/km
