Overview

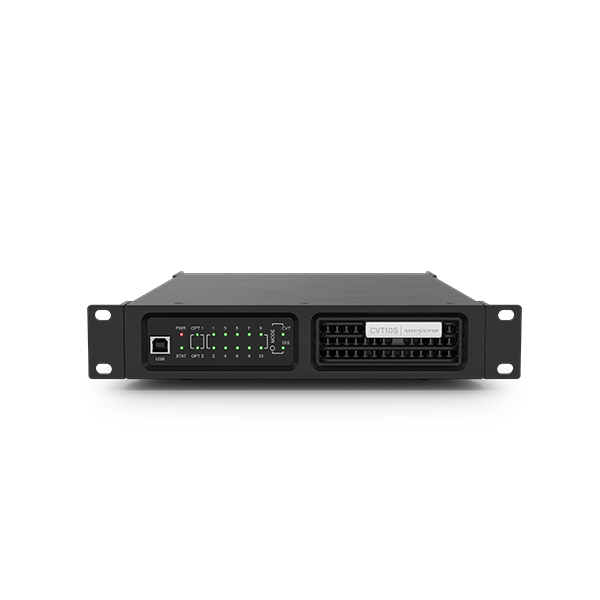

NovaStar Fiber Converter CVT-10-S EO Converter offers a single-mode optical/electrical signal conversion solution for indoor use. Full-duplex low-interference data transmission makes this converter suitable for bridging long-distance signal runs. Its 19″ 1U design is both rack and desk mountable. Features include 10G optical modules, 1G Ethernet ports and a USB-B control port. Works with all NovaStar processors and supports 10x Gigabit Ethernet ports when used with the NovaStar MX40 Pro LED display controller.

Specifications

Construction / Physical

• Dimensions: 10.1x11.4x1.72 in (254.3x290x43.6mm)
• Weight: 4.63 lb (2.1 kg)
• Mounting: 1U Half Space Rackmount Screws

Connections

• Power Connection: Locking IEC to bare-ended (sold separately)
• Fiber Port(s) Type: 10 G, 1,310 nm Single Mode, 10 km Transmission Distance
• Signal Connector (Fiber): Dual LC
• Signal Connector (Ethernet): RJ-45
• Firmware Update Port: USB type-B
• Fiber Module Config: Primary (preinstalled), Backup (reserved)
• Display: LED Power/Signal Indicators

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power/Current (120V, 60 Hz): 150 W / 1.25 A
• Power/Current (208V, 60 Hz): 150 W / 0.73 A
• Power/Current (230V, 50 Hz): 150 W / 0.66 A
• Power/Current (240V, 50 Hz): 150 W / 0.63 A

Certifications / Qualifications

• Listings: RoHS, FCC, CE, IC, RCM
• IP Rating: IP20 (indoor)
• Thermal Dissipation: 512 BTU/hour
• Operating Temperature: -4 °F to 131 °F (-20 °C to 55 °C)
