Overview

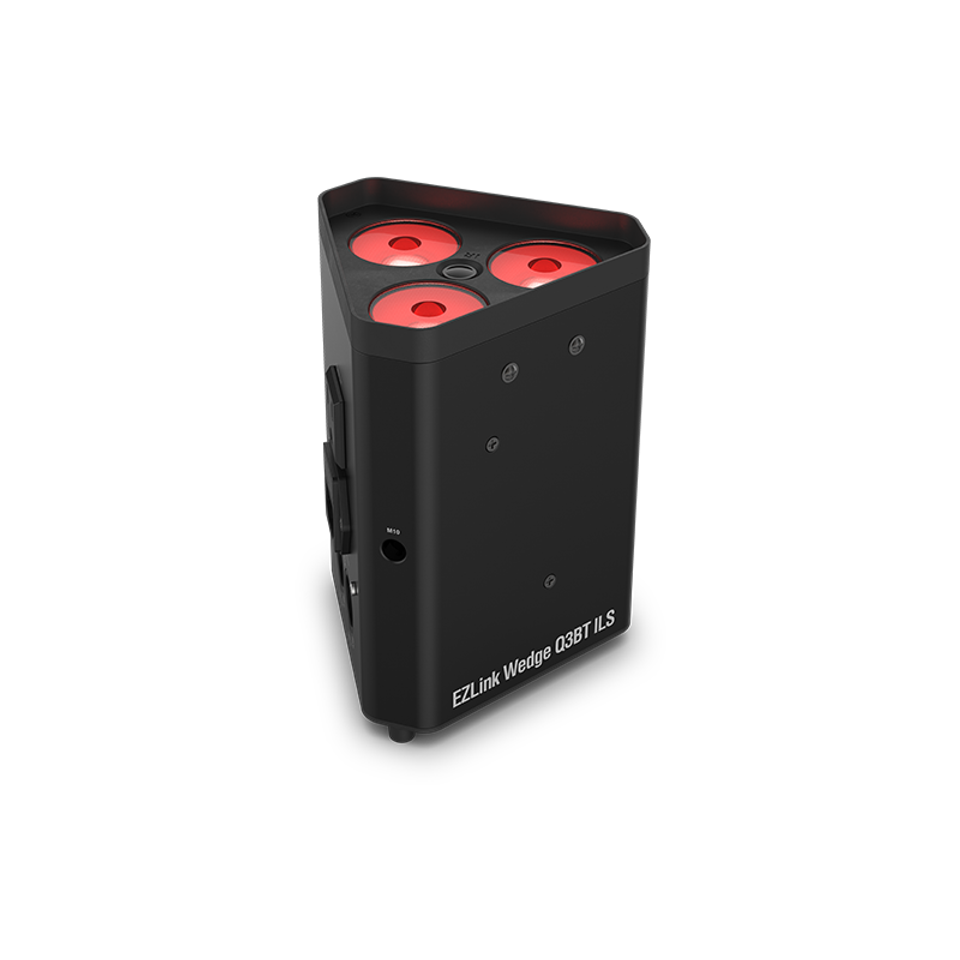

EZLink Wedge Q3BT ILS is a 100% TRUE wireless, battery-operated, quad-color (RGBA) LED wash light solution. Its wedge-shaped design makes it the ideal fixture for venue corners, Trusst Goal Post and Arch Kit truss systems. Enjoy a wide range of control options including the IRC-6 remote, ILS, Bluetooth, and DMX. Generate a broad spectrum of colors and achieve natural-looking color temperatures throughout your event thanks to punchy amber LEDs.

Features

• 100% TRUE wireless, battery-operated, quad-color (RGBA) LED wash light with built-in Bluetooth® wireless technology
• ILS compatibility for use in the ILS ecosystem
• Control directly from a smart phone or tablet without any additional hardware
• Convenient, wireless non-DMX control using the IRC-6 remote
• The wedge-shaped design makes it fit perfectly inside TRUSST® Goal Post and Arch Kit truss systems
• Generate a broad spectrum of colors and achi66.8eve natural-looking color temperatures with punchy amber LEDs
• Attaches to truss without the need for a bracket, using M10 or M12 threaded rig points
• Save time running cables and extension cords by power linking multiple units

Specifications

• DMX Channels:4 or 8
• DMX Connectors:3-Pin XLR
• Light Source:3 LEDs (quad-color RGBA) 5 W, (1.4 A), 50,000 hours life expectancy
• Strobe Rate:0 to 20 Hz
• Beam Angle:13°
• Field Angle:25°
• Recharge Time:5 hours
• Illuminance:1,400 lux @ 2 m
• Power Linking:16 units @ 120 V; 23 units @ 230 V
• Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
• Weight:2 lb (0.9 kg)
• Size:4.3 x 4.3 x 6.8 in (109 x 109 x 171 mm)
• Approvals:CE, RoHS, UKCA, FC
• Optional Controllers: IRC-6
• Maximum Run Time (all on) (single color): up to 20 hours: up to 9 hours Maximum Run Time
• Bracket Mounting Hole: 13 mm
• Maximum Run Time (all on):: up to 9 hours
• Maximum Run Time (single color):: up to 20 hours
• Power and Current: 30 W, 0.5 A @ 120 V, 60 Hz
• Power and Current: 28 W, 0.3 A @ 230 V, 50 Hz
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
