Overview

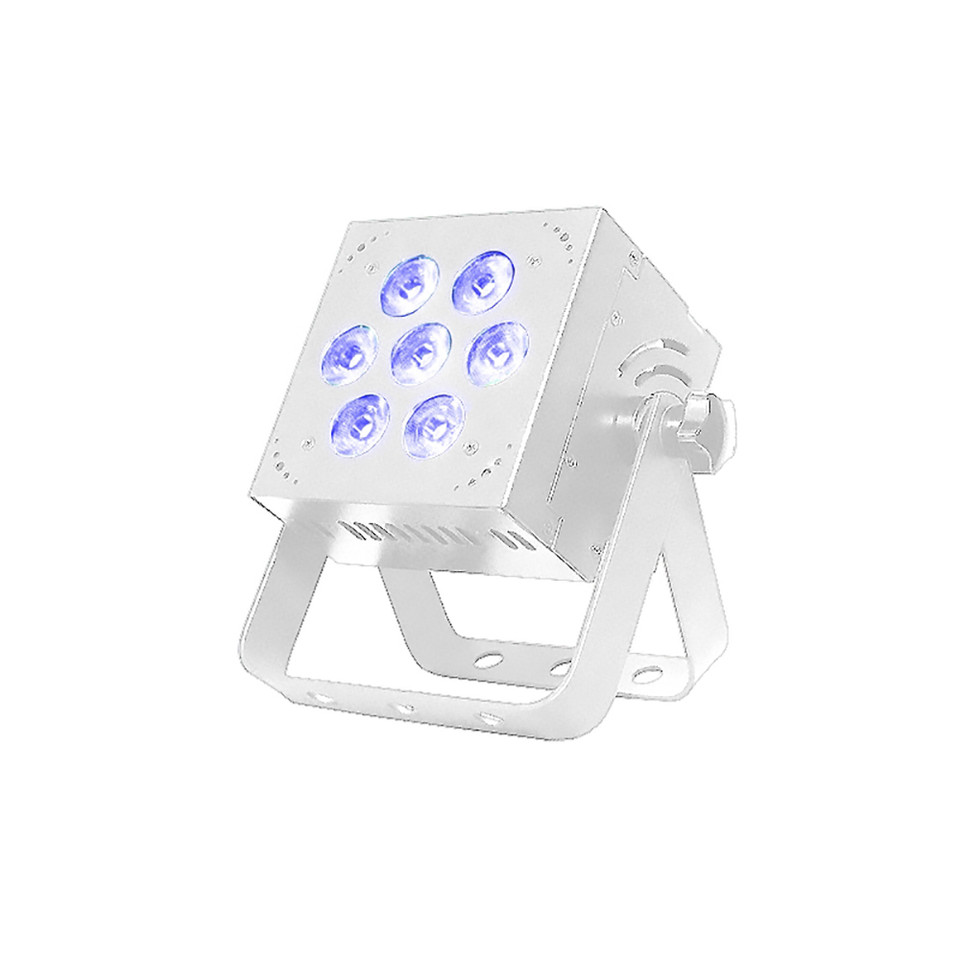

HotBox EXA fixtures offer 7x 15W 6-in-1 RGBAW+UV LEDs, advanced electronics, and a rock-solid aluminum casing with dual hanging brackets, all wrapped up in a cute little package. It weighs in at just 3.5 pounds and is only 4 x 5 x 5 inches (7.25 inches tall including the brackets.)
It puts out a ton of light, and its user selectable 3/6/8/10 or 11 DMX channel modes allow them to work great with any type of controller. It offers RGBAW+UV color mixing, multiple built-in programs, flicker-free 32-bit dimming, and even easy HSV color mixing ability in 3-channel DMX mode.
Features
- RGBAW+UV color mixing via 7x 15W 6-in-1 LEDs
- Variable electronic dimming & strobe
- 5 user-selectable 32-bit dimming curves
- Built-in color & chase macros via DMX
- Built-in automated programs via master/slave
- Built-in sound active programs
- Color mixing ability in standalone mode
- Rugged and well-built (It hits the gym regularly)
- Super-quiet variable-speed internal fan cooling
- Dual mounting brackets for positioning flexibility
- Flicker-free constant-current 400hz LED driver
- 3-pin male input and 3-pin female output
- powerCON® compatible AC power In/Out connectors
Specifications
Optical
Light source: 7x 15W 6-in-1 LEDs 100,000 hours
Beam Angle: 25 degree optics standard, 26 degree beam, 30 degree field
Luminous Intensity: 11,250 Lux @ 1M, 3,150 Lux @ 2M
Control
Protocol: USITT DMX-512
DMX Channels: 3/6/8/10/11
Input: 3-pin XLR Male
Output: 3-pin XLR Female
Operating Modes: Standalone, M/S, Sound Active, Color Preset
Power
Operating Voltage: 100-264VAC, 47-63 Hz
Fuse: 2A 250V
Power Consumption: 58W
Warranty
2-year limited warranty
Dims & Weight
5" L x 4" W x 5" H
6.0 lbs
